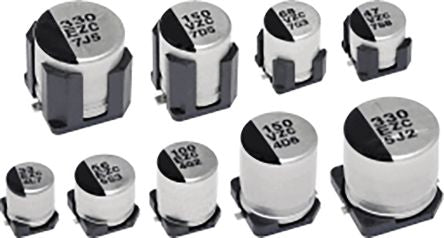

Panasonic 68μF 50V dc Hybrid Conductive Polymer Aluminium Capacitor, Surface Mount 8 Dia. x 10.2mm +125°C 8mm [EEHZC1H680P]; 179-9291
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 68 µF |
| Voltage | 50 V dc |
| Mounting Type | Surface Mount |
| Technology | Hybrid |
| Dimensions | 8 Dia. x 10.2mm |
| Height | 10.2mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 8mm |
| Maximum Operating Temperature | +125°C |
| Lifetime | 1000h |
| Series | ZC |
| Polarised | Polar |
| Dissipation Factor | 0.001 |
| Automotive Standard | AEC-Q200 |
| Ripple Current | 1.25A |
| Leakage Current | 3 μA |
| Equivalent Series Resistance | 30mΩ |
| Tolerance | ±20% |
