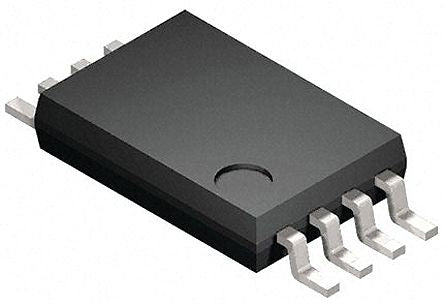

OP279GRUZ-REEL Analog Devices, High Current, Op Amp, RRIO, 5MHz, Maximum of 12 V, 8-Pin TSSOP [OP279GRUZ-REEL]; 153-3229
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | High Current |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Power Supply Type | Single |
| Number of Channels per Chip | 1 |
| Pin Count | 8 |
| Typical Single Supply Voltage | Maximum of 12 V |
| Typical Gain Bandwidth Product | 5MHz |
| Typical Slew Rate | 3V/µs |
| Maximum Operating Frequency | 5 MHz |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Minimum Input Voltage | 5 V |
| Typical Voltage Gain | 86 dB |
| Offset Voltage | ±4mV |
| Rail to Rail | Rail to Rail Input/Output |
| Maximum Input Voltage | 60 V |
| Width | 3.1mm |
| Output Current | ±60 mA |
| Length | 4.5mm |
| Input Voltage Range | 5 → 60 V |
| Typical Input Voltage Noise Density | 22nV/√Hz |
| Dimensions | 4.5 x 3.1 x 0.95mm |
| Height | 0.95mm |
| Input Offset Current | 100nA |
