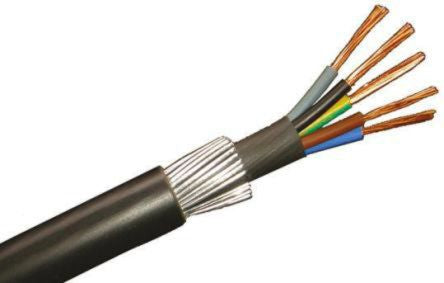

RS PRO 5 Core Black Armoured Cable With Polyvinyl Chloride PVC Sheath , SWA Galvanised Steel Wire, 35.4 A; 777-0535
Mã kho: 7770535
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 5 |
| Cross Sectional Area | 4 mm² |
| Current Rating | 35.4 A |
| Reel Length | 50m |
| Sheath Material | Polyvinyl Chloride PVC |
| Voltage Rating | 1 kV, 600 V |
| Outer Diameter | 18.1mm |
| Armour Construction | Galvanised Steel Wire |
| Insulation Material | PEX |
| Minimum Bend Radius | 15 x D |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 90°C |
| Bedding Material | PVC |
| Conductor Strand Type | Stranded |
| Conductor Material | Annealed Copper |
| Sheath Colour | Black |
| Standards Met | Euroclass Eca |
| Cable Shape | Multicore |
| Conductor Resistance | 4.61 Ω/km |
