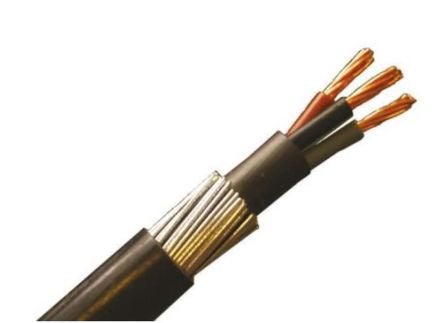

RS PRO 3 Core Armoured Cable With Polyvinyl Chloride PVC Sheath , SWA Galvanised Steel Wire, 25 A; 777-0539
Mã kho: 7770539
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 3 |
| Cross Sectional Area | 1.5 mm² |
| Current Rating | 25 A |
| Reel Length | 100m |
| Sheath Material | Polyvinyl Chloride PVC |
| Voltage Rating | 1 kV, 600 V |
| Outer Diameter | 13.2mm |
| Armour Construction | Galvanised Steel Wire |
| Insulation Material | PEX |
| Minimum Bend Radius | 15 x D |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 90°C |
| Bedding Material | PVC |
| Cable Shape | Multicore |
| Conductor Strand Type | Stranded |
| Conductor Resistance | 12.1 Ω/km |
| Standards Met | Euroclass Eca |
| Conductor Material | Annealed Copper |
