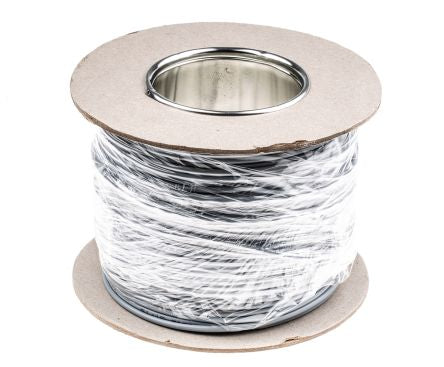

RS PRO 100m 2 Core Screened Grey Microphone Cable, 30 V, 3.1mm od , 0.05 mm² CSA; 749-2544
Mã kho: 7492544
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 2 |
| Cross Sectional Area | 0.05 mm² |
| Screened/Unscreened | Screened |
| Insulation Material | PVC |
| Outer Diameter | 3.1mm |
| Reel Length | 100m |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +60°C |
| Sheath Colour | Grey |
| Number of Strands | 7 |
| Screen Type | Lap |
| Size of Strands | 0.3 mm |
| Voltage Rating | 30 V |
| Conductor Material | Bare Copper |
| Core Strands | 7/0.3 mm |
| Conductor Strand Type | Stranded |
| Sheath Material | Polyvinyl Chloride PVC |
| American Wire Gauge | 30 AWG |
| Conductor Resistance | 340 Ω/km |
| Cable Shape | Multicore |
| Filler Material | Cotton |
| Length | 100m |
