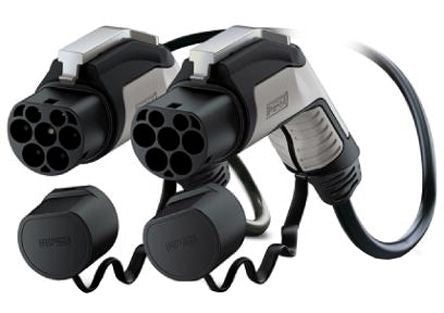

Phoenix Contact EV-GBG3JK-1AC32A-5.0M6.0ESBK01 Series, GB/T Electric vehicle connector Plug to Socket [1623516]; 124-5224
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | EV-GBG3JK-1AC32A-5.0M6.0ESBK01 |
| Connector Type | GB/T |
| Number of Contacts | 5 |
| Wire Size | 1 x 0.5 mm², 3 x 6 mm² |
| Current Rating | 2 (Signal Contact) A, 32 (Power Contact) A |
| Operating Voltage | 30 (Signal Contact) Vac, 250 (Power Contact) V |
| Connector Gender | Male to Female |
| Contact Gender | Female, Male |
| Key Type | U |
| Height | 151.3mm |
| For Use With | E-Mobility Charging Station (EVSE) |
| Maximum Operating Temperature | 50°C |
| Contact Plating | Silver |
| Width | 58mm |
| Colour | Black |
| Orientation | Right Angle |
| Contact Resistance | 220 Ω + 3.3 kΩ (Lever Actuated) |
| IP Rating | IP55, IP56 |
| Latching Type | Lever Actuated |
| Termination Method | Plug In |
| Depth | 238.7 (Vehicle Connector) mm, 249.2 (Plug) mm |
| Minimum Operating Temperature | -30°C |
| Mounting Type | Cable Mount |
| Standards Met | GB/T 20234.2-2015 |
| Cable Length | 5m |
