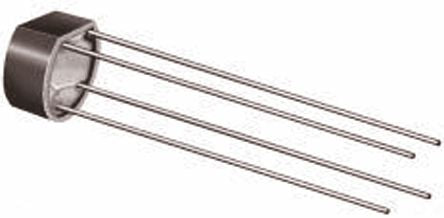

Vishay 2W005G-E4/51, Bridge Rectifier, 2A 50V, 4-Pin WOG [2W005G-E4/51]; 811-6140
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Peak Average Forward Current | 2A |
| Bridge Type | Single Phase |
| Peak Reverse Repetitive Voltage | 50V |
| Mounting Type | Through Hole |
| Package Type | WOG |
| Pin Count | 4 |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 60A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1.1V |
| Peak Reverse Current | 500µA |
| Length | 9.86mm |
| Width | 8.84mm |
| Dimensions | 9.86 x 8.84 x 5.6mm |
| Height | 5.6mm |
