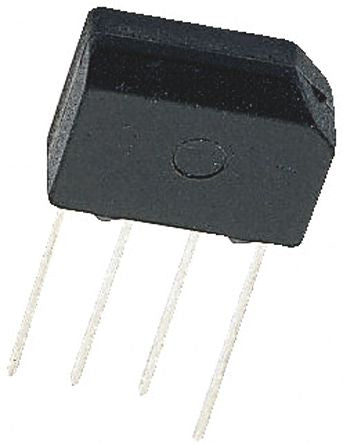

Vishay KBL08-E4/51, Bridge Rectifier, 4A 800V, 4-Pin KBL [KBL08-E4/51]; 165-7115
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bridge Type | Single Phase |
| Peak Average Forward Current | 4A |
| Peak Reverse Repetitive Voltage | 800V |
| Mounting Type | Through Hole |
| Package Type | KBL |
| Pin Count | 4 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 200A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -50 °C |
| Peak Forward Voltage | 1.1V |
| Peak Reverse Current | 1mA |
| Length | 19.5mm |
| Height | 16.3mm |
| Width | 6.5mm |
| Dimensions | 19.5 x 6.5 x 16.3mm |
