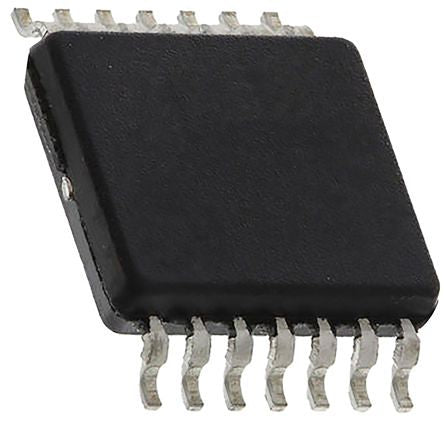

Texas Instruments SN74LS07DBR Hex Buffer & Line Driver, Open Collector, 4.75 → 5.25 V, 14-Pin SSOP [SN74LS07DBR]; 662-8367
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | LS |
| Logic Function | Buffer, Driver |
| Number of Channels per Chip | 6 |
| Input Type | Single Ended |
| Output Type | Open Collector |
| Polarity | Non-Inverting |
| Mounting Type | Surface Mount |
| Package Type | SSOP |
| Pin Count | 14 |
| Maximum High Level Output Current | -0.25mA |
| Maximum Low Level Output Current | 40mA |
| Maximum Propagation Delay Time @ Maximum CL | 30 ns @ 5 V |
| Dimensions | 6.2 x 5.3 x 1.95mm |
| Height | 1.95mm |
| Maximum Operating Temperature | +70 °C |
| Length | 6.2mm |
| Maximum Operating Supply Voltage | 5.25 V |
| Minimum Operating Temperature | 0 °C |
| Width | 5.3mm |
| Minimum Operating Supply Voltage | 4.75 V |
| Propagation Delay Test Condition | 15pF |
