Dây rút Panduit [BM2M-C]

Name: Dây rút Panduit [BM2M-C]
Brand: Panduit
SKU: PAB592
Availability: InStock

Mã kho: PAB592

Mã nhà sản xuất: BM2M-C

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit BM2M-C

MÔ TẢ SẢN PHẨM

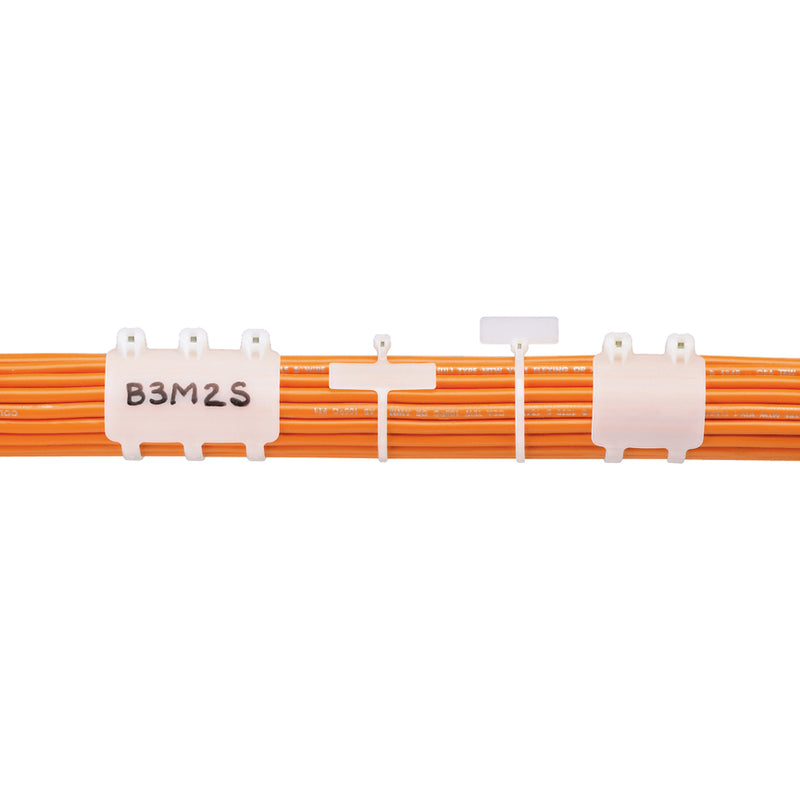

Dome-Top® barb ty marker tie, wrap, miniature cross section, 7.9 (201mm) length, .29 x 1.09 (7.4 x 27.7mm) marker write-on area, nylon 6.6, natural, standard package.

_THÔNG SỐ KỸ THUẬT:

Product Type	Cable Tie
Sub Brand	Dome-Top®
Color	Natural
Environment	Indoor
For Use With	Bundles
Marker Type	Wrap
Material	Nylon 6.6
Maximum Bundle Diameter (In.)	2
Maximum Bundle Diameter (mm)	51
Maximum Installation Temperature (°C)	0
Maximum Installation Temperature (°F)	32
Maximum Operating Temperature (°C)	85
Maximum Operating Temperature (°F)	185
Minimum Bundle Diameter (In.)	0.18
Minimum Bundle Diameter (mm)	4.8
Minimum Installation Temperature (°C)	-20
Minimum Installation Temperature (°F)	-4
Minimum Loop Tensile Strength (N)	80
Minimum Loop Tensile Strength (lb)	18
Minimum Operating Temperature (°C)	-60
Minimum Operating Temperature (°F)	-70
Overall Length (In.)	7.9
Overall Length (mm)	201
Body Width (In.)	0.095
Body Width (mm)	2.4
Body Thickness (In.)	0.046
Body Thickness (mm)	1.2
Resistance Properties	NA
Standards Met	UL 62275 Compliant (Type 1, 11),CE Compliant,RoHS Compliant
Application	General
