Dây rút Panduit [CBR6LH-C30]

Name: Dây rút Panduit [CBR6LH-C30]
Brand: Panduit
SKU: PAB054
Price: 31980.0 VND
Availability: InStock

Mã kho: PAB054

Mã nhà sản xuất: CBR6LH-C30

Tên nhà sản xuất: Panduit

31.980₫ - 31.980₫

31.980₫

31.980₫ - 31.980₫

31.980₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit CBR6LH-C30

MÔ TẢ SẢN PHẨM

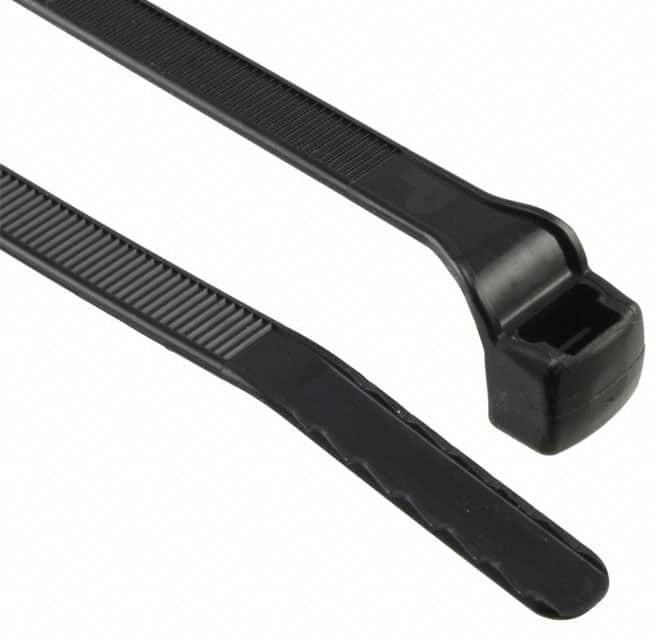

Panduit Contour-Ty® Cable Ties are designed to provide consistent strength in high-vibration environments. Plus, with a low-profile head and parallel entry design, the tip enters easy and stays snug and snag-free. And with Heat Stabilized Nylon 6.6 material it's ideal for temperatures up to 239 degrees. Light-heavy cross section, 20.9in, Tensile Strength: 534, Black, 100pc.

_THÔNG SỐ KỸ THUẬT:

Product Type	Cable Tie
Color	Black
Environment	Indoor
Sub Brand	Contour-Ty®
For Use With	GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH
Material	Heat Stabilized Nylon 6.6
Resistance Properties	Heat Resistant
Maximum Bundle Diameter (In.)	6
Maximum Bundle Diameter (mm)	152.4
Maximum Installation Temperature (°C)	0
Maximum Installation Temperature (°F)	32
Maximum Operating Temperature (°C)	115
Maximum Operating Temperature (°F)	239
Minimum Bundle Diameter (In.)	0.32
Minimum Bundle Diameter (mm)	8
Minimum Installation Temperature (°C)	-20
Minimum Installation Temperature (°F)	-4
Minimum Loop Tensile Strength (N)	534
Minimum Loop Tensile Strength (lb)	120
Minimum Operating Temperature (°C)	-60
Minimum Operating Temperature (°F)	-76
Overall Length (In.)	20.9
Overall Length (mm)	530.9
Body Width (In.)	0.3
Body Width (mm)	7.6
Body Thickness (In.)	0.07
Body Thickness (mm)	1.8
Standards Met	SAE-AS23190A, SAE-AS33671, RoHS Complaint
Military Cross Reference Number	MS3367-41-11
Part Features	Low profile head avoids snags and reduces overall bundle size, Outside teeth and smooth round edges protect cable jacket — ideal for high vibration applications, Fully enclosed head for consistent strength
