Dây rút Panduit 333mm x 12.7mm - [PLDC1.5EH-C350]

Name: Dây rút Panduit 333mm x 12.7mm - [PLDC1.5EH-C350]
Brand: Panduit
SKU: PAB489
Price: 14400.0 VND
Availability: InStock

Mã kho: PAB489

Mã nhà sản xuất: PLDC1.5EH-C350

Tên nhà sản xuất: Panduit

14.400₫ - 14.400₫

14.400₫

14.400₫ - 14.400₫

14.400₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit PLDC1.5EH-C350

MÔ TẢ SẢN PHẨM

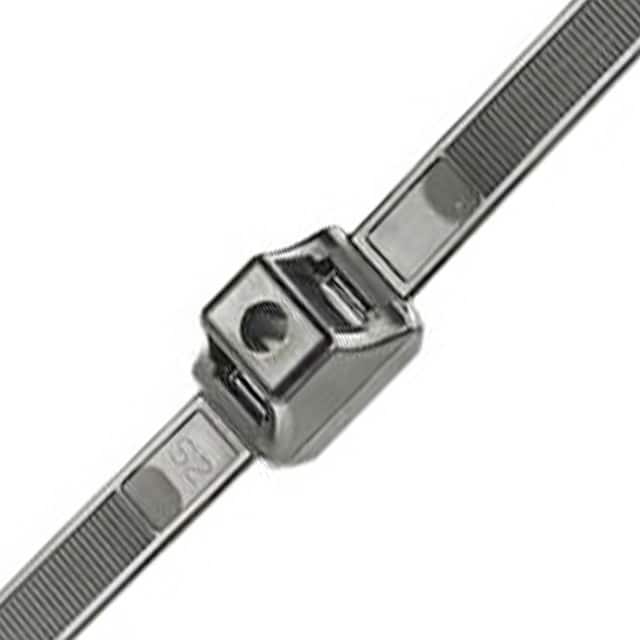

Panduit PLDC1.5EH-C350 Double Clamp cable ties provide a cost-effective way to secure and separate parallel hoses, tubing wires, and wiring bundles, in an easy to install one-piece design. Ideal for heavy duty applications such as truck and heavy equipment. Extra-Heavy cross section, 13.1” (333mm) length, made of Impact Modified Heat Stabilized Weather Resistant Nylon 6.6 with high resistance to ultraviolet light and high temperatures, are black in color, and come in packages of 100.

_THÔNG SỐ KỸ THUẬT:

Application	Used to secure and separate parallel hoses, tubing, wires and wiring bundles in an easy to install one-piece design.
Product Type	Double Clamp Cable Ties
Color	Black
Environment	Indoor/Outdoor
For Use With	GTH-E, GS4EH-E
Material	Impact Modified Heat Stabilized Weather Resistant Nylon 6.6
Standards Met	CE Compliant
Maximum Bundle Diameter (In.)	1.3
Minimum Bundle Diameter (In.)	0.2
Sub Brand	Pan-Ty®
Maximum Bundle Diameter (mm)	33
Minimum Bundle Diameter (mm)	5.1
Minimum Installation Temperature (°C)	-20
Minimum Installation Temperature (°F)	-4
Maximum Operating Temperature (°C)	115
Minimum Operating Temperature (°C)	-60
Maximum Operating Temperature (°F)	239
Minimum Operating Temperature (°F)	-76
Mounting Hole Diameter (In.)	0.25
Mounting Hole Diameter (mm)	6.29
Mounting Hole Width (In.)	0.8
Mounting Hole Width (mm)	20.32
Overall Length (In.)	13.1
Overall Length (mm)	333
Body Width (In.)	0.5
Body Width (mm)	12.7
Body Thickness (In.)	0.055
Body Thickness (mm)	1.4
Resistance Properties	Heat and UV Resistant
Minimum Loop Tensile Strength (N)	667
Minimum Loop Tensile Strength (lb)	150
