Dây rút Panduit 290mm x 7.62mm Black [PLT3H-TL100]

Name: Dây rút Panduit 290mm x 7.62mm Black [PLT3H-TL100]
Brand: Panduit
SKU: PAB298
Price: 14710.0 VND
Availability: InStock

Mã kho: PAB298

Mã nhà sản xuất: PLT3H-TL100

Tên nhà sản xuất: Panduit

14.710₫ - 14.710₫

14.710₫

14.710₫ - 14.710₫

14.710₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit PLT3H-TL100

MÔ TẢ SẢN PHẨM

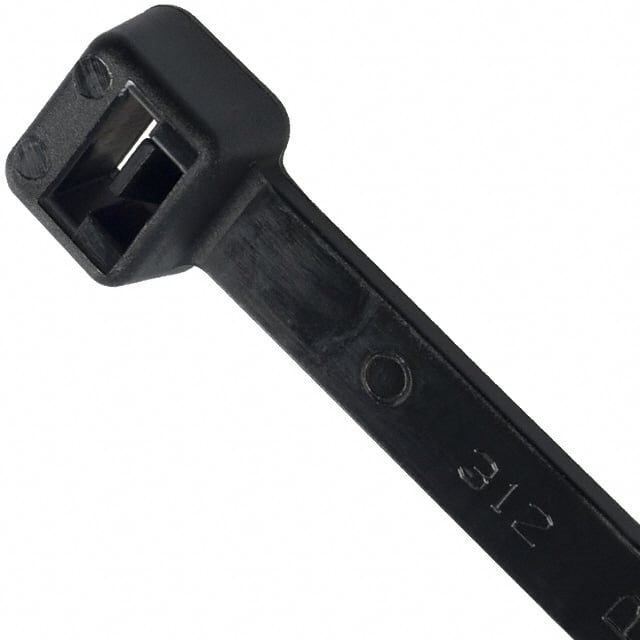

Panduit PLT3H-TL100 Locking Cable Ties are designed to satisfy the needs of chemical and weather resistant applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Light-Heavy cross section, 11.4" (290mm) length. Made of Weather Resistant Polypropylene, are black in color and come in packages of 250.

_THÔNG SỐ KỸ THUẬT:

Product Type	Cable Ties
Color	Black
Environment	Indoor/Outdoor
Sub Brand	Pan-Ty®
For Use With	GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH
Material	Weather Resistant Polypropylene
Resistance Properties	Chemical and UV Resistant
Maximum Bundle Diameter (In.)	3
Maximum Bundle Diameter (mm)	76
Maximum Installation Temperature (°F)	32
Maximum Operating Temperature (°C)	115
Maximum Operating Temperature (°F)	239
Minimum Bundle Diameter (In.)	0.188
Minimum Bundle Diameter (mm)	4.8
Minimum Installation Temperature (°C)	-20
Minimum Installation Temperature (°F)	-4
Minimum Loop Tensile Strength (N)	222
Minimum Loop Tensile Strength (lb)	50
Minimum Operating Temperature (°C)	-60
Minimum Operating Temperature (°F)	-76
Overall Length (In.)	11.4
Overall Length (mm)	290
Body Width (In.)	0.3
Body Width (mm)	7.6
Body Thickness (In.)	0.075
Body Thickness (mm)	1.9
Standards Met	RoHS Compliant
Part Features	One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength.
