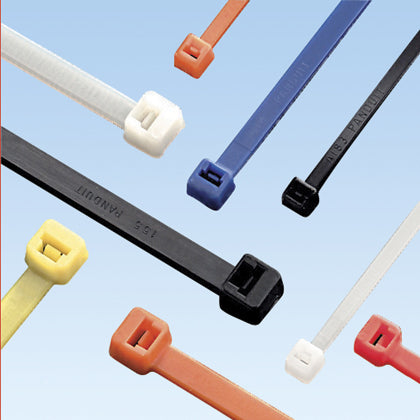

Pan-Ty® locking tie, standard cross section, 11.5 (292mm) length, nylon 6.6, brown.

Product Type	Cable Tie
Color	Brown
Environment	Plenum
Sub Brand	Pan-Ty®
For Use With	GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH
Material	Nylon 6.6
Resistance Properties	NA
Maximum Bundle Diameter (In.)	3
Maximum Bundle Diameter (mm)	76.2
Maximum Installation Temperature (°F)	32
Maximum Operating Temperature (°C)	85
Maximum Operating Temperature (°F)	185
Minimum Bundle Diameter (In.)	0.06
Minimum Bundle Diameter (mm)	1.5
Minimum Installation Temperature (°C)	-20
Minimum Installation Temperature (°F)	-4
Minimum Loop Tensile Strength (N)	222
Minimum Loop Tensile Strength (lb)	50
Minimum Operating Temperature (°C)	-60
Minimum Operating Temperature (°F)	-76
Overall Length (In.)	11.5
Overall Length (mm)	292
Body Width (In.)	0.19
Body Width (mm)	4.8
Body Thickness (In.)	0.052
Body Thickness (mm)	1.3
Standards Met	CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2S, 21S), RoHS Complaint
Military Cross Reference Number	MS3367-7-1
Part Features	One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength.
