Dây rút Panduit [PLT5S-M8]

Mã kho: PAB321
Mã nhà sản xuất: PLT5S-M8
Tên nhà sản xuất: Panduit
Original price 10.330₫ - Original price 10.330₫
Original price
10.330₫
10.330₫ - 10.330₫
Current price 10.330₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit PLT5S-M8

MÔ TẢ SẢN PHẨM

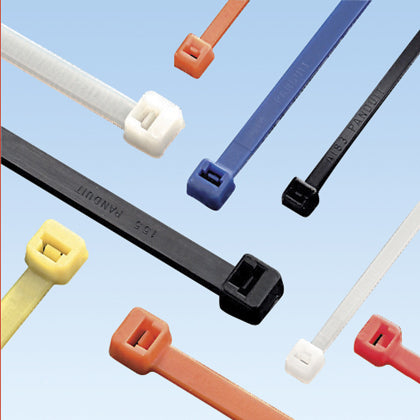

Pan-Ty® locking tie, standard cross section, 17.5 (445mm) length, nylon 6.6, gray.

_THÔNG SỐ KỸ THUẬT:

Product Type Cable Tie
Color Gray
Environment Indoor
Sub Brand Pan-Ty®
For Use With GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH
Material Nylon 6.6
Resistance Properties NA
Maximum Bundle Diameter (In.) 5
Maximum Bundle Diameter (mm) 127
Maximum Installation Temperature (°F) 32
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Bundle Diameter (In.) 0.06
Minimum Bundle Diameter (mm) 1.5
Minimum Installation Temperature (°C) -20
Minimum Installation Temperature (°F) -4
Minimum Loop Tensile Strength (N) 222
Minimum Loop Tensile Strength (lb) 50
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Overall Length (In.) 17.5
Overall Length (mm) 445
Body Width (In.) 0.19
Body Width (mm) 4.8
Body Thickness (In.) 0.052
Body Thickness (mm) 1.3
Standards Met CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2S, 21S), RoHS Complaint
Part Features One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength.
