Dây rút Panduit 530mm x 8.89mm Black [PLT6H-C30]

Name: Dây rút Panduit 530mm x 8.89mm Black [PLT6H-C30]
Brand: Panduit
SKU: PAA784
Price: 25440.0 VND
Availability: InStock

Mã kho: PAA784

Mã nhà sản xuất: PLT6H-C30

Tên nhà sản xuất: Panduit

25.440₫ - 25.440₫

25.440₫

25.440₫ - 25.440₫

25.440₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit PLT6H-C30

MÔ TẢ SẢN PHẨM

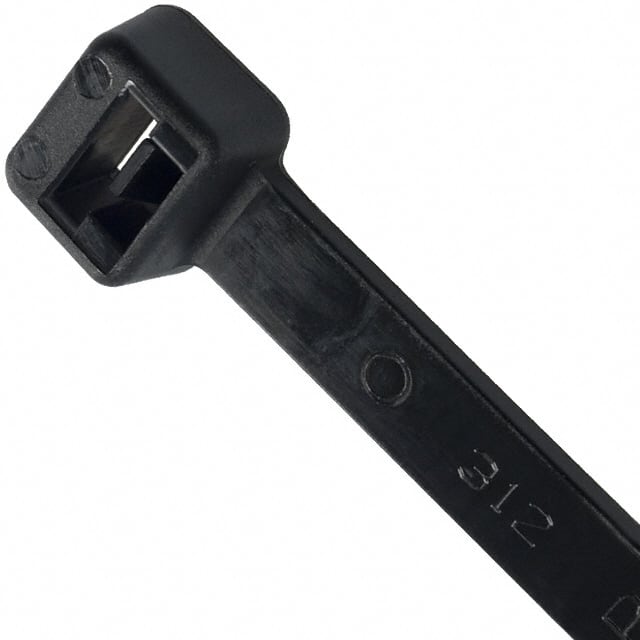

Panduit PLT6H-C30 Locking Cable Ties are designed to satisfy the needs of high temperature applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Heavy cross section, 20.9” (530mm) length. Made of Heat Stabilized Nylon 6.6, are black in color and come in packages of 100.

_THÔNG SỐ KỸ THUẬT:

Product Type	Cable Ties
Color	Black
Environment	Indoor
Sub Brand	Pan-Ty®
For Use With	GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH
Material	Heat Stabilized Nylon 6.6
Resistance Properties	Heat Resistant
Maximum Bundle Diameter (In.)	6
Maximum Bundle Diameter (mm)	152
Maximum Installation Temperature (°F)	32
Maximum Operating Temperature (°C)	115
Maximum Operating Temperature (°F)	239
Minimum Bundle Diameter (In.)	0.188
Minimum Bundle Diameter (mm)	4.8
Minimum Installation Temperature (°C)	-20
Minimum Installation Temperature (°F)	-4
Minimum Loop Tensile Strength (N)	778
Minimum Loop Tensile Strength (lb)	175
Minimum Operating Temperature (°C)	-60
Minimum Operating Temperature (°F)	-76
Overall Length (In.)	20.9
Overall Length (mm)	530
Body Width (In.)	0.35
Body Width (mm)	8.9
Body Thickness (In.)	0.078
Body Thickness (mm)	2
Standards Met	CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 1, 11), RoHS Complaint
Military Cross Reference Number	MS3367-9-11
Part Features	One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength.
