Dây rút Panduit [PLT8H-C00]

Mã kho: PAB668
Mã nhà sản xuất: PLT8H-C00
Tên nhà sản xuất: Panduit
Original price 0₫ - Original price 0₫
Original price
0₫
0₫ - 0₫
Current price 0₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit PLT8H-C00

MÔ TẢ SẢN PHẨM

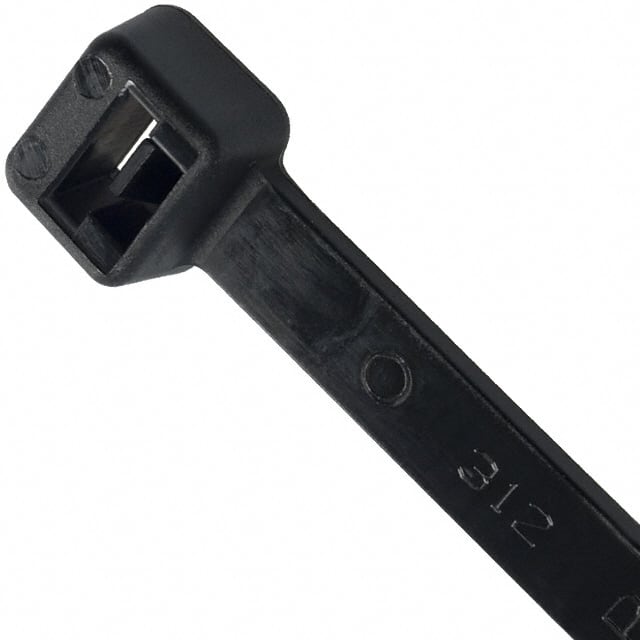

Pan-Ty® locking tie, heavy cross section, 30.6 (779mm) length, military spec weather resistant nylon 6.6, black.

_THÔNG SỐ KỸ THUẬT:

Product Type Cable Tie
Color Black
Environment Outdoor
Sub Brand Pan-Ty®
For Use With GTH-E, GS4H-E, GS4EH-E, PTH
Material Nylon 6.6
Resistance Properties UV Resistant
Maximum Bundle Diameter (In.) 8
Maximum Bundle Diameter (mm) 203.2
Maximum Installation Temperature (°F) 32
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Bundle Diameter (In.) 0.19
Minimum Bundle Diameter (mm) 4.8
Minimum Installation Temperature (°C) -20
Minimum Installation Temperature (°F) -4
Minimum Loop Tensile Strength (N) 778
Minimum Loop Tensile Strength (lb) 175
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Overall Length (In.) 30.6
Overall Length (mm) 779
Body Width (In.) 0.35
Body Width (mm) 8.9
Body Thickness (In.) 0.078
Body Thickness (mm) 2
Standards Met UL 62275 Compliant (Type 1, 11), UL Recognized (File #E56854), CSA Certified, RoHS Complaint
Part Features One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength.
