Dây rút Panduit [SSC4H-S25-D30]

Name: Dây rút Panduit [SSC4H-S25-D30]
Brand: Panduit
SKU: PAB676
Availability: InStock

Mã kho: PAB676

Mã nhà sản xuất: SSC4H-S25-D30

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

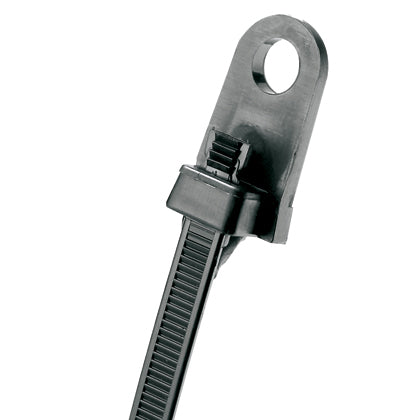

Sta-Strap® clamp tie, light-heavy cross section, 1/4 (M6) screw, 15.6 (395mm) length, heat stabilized nylon 6.6, black.

Product Type	Cable Tie
Color	Black
Environment	Indoor
Material	Heat Stabilized Nylon 6.6
Standards Met	CE, RoHS Compliant, UL 62275 Compliant (Type 1, 11), UL Recognized (File #E56854)
Resistance Properties	NA
For Use With	Cables
Maximum Bundle Diameter (In.)	4
Minimum Bundle Diameter (In.)	0.06
Maximum Bundle Diameter (mm)	102
Minimum Bundle Diameter (mm)	1.5
Maximum Installation Temperature (°C)	0
Minimum Installation Temperature (°C)	-20
Sub Brand	Pan-Ty®
Maximum Installation Temperature (°F)	32
Minimum Installation Temperature (°F)	-4
Maximum Operating Temperature (°C)	85
Minimum Operating Temperature (°C)	-60
Maximum Operating Temperature (°F)	185
Minimum Operating Temperature (°F)	-76
Minimum Loop Tensile Strength (N)	534
Minimum Loop Tensile Strength (lb)	120
Overall Length (In.)	15.55
Overall Length (mm)	395
Body Width (In.)	0.3
Body Width (mm)	7.6
Part Features	Two-piece design, extremely low thread force, may be released prior to final tensioning.
