Dây rút Panduit [SSPM4HP-L300]

Name: Dây rút Panduit [SSPM4HP-L300]
Brand: Panduit
SKU: PAB414
Availability: InStock

Mã kho: PAB414

Mã nhà sản xuất: SSPM4HP-L300

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit SSPM4HP-L300

MÔ TẢ SẢN PHẨM

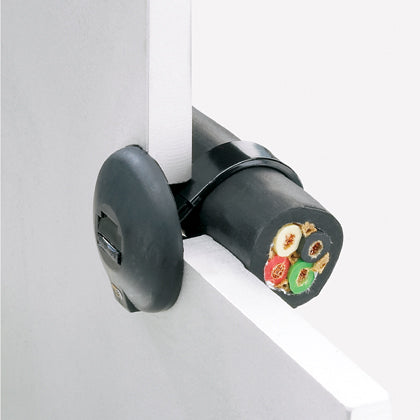

Sta-Strap® Cable Ties have a unique design that ties directly to a chassis or panel without separate fasteners or mounting devises. Plus, with heat stabilized weather-resistant Nylon material, it's ideal for high-vibration, high-UV environments up to 239 degrees. Center pilot, Heavy cross section, 14.8, Tensile Strength: 534, black, 50pc.

_THÔNG SỐ KỸ THUẬT:

Product Type	Cable Tie
Color	Black
Environment	Outdoor
Sub Brand	Sta-Strap®
For Use With	GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH
Material	Nylon 6.6
Resistance Properties	UV Resistant
Maximum Bundle Diameter (In.)	4
Maximum Bundle Diameter (mm)	101.6
Maximum Installation Temperature (°C)	70
Maximum Installation Temperature (°F)	158
Maximum Operating Temperature (°C)	115
Maximum Operating Temperature (°F)	239
Minimum Bundle Diameter (In.)	0.06
Minimum Bundle Diameter (mm)	1.5
Minimum Installation Temperature (°C)	70
Minimum Installation Temperature (°F)	-40
Minimum Loop Tensile Strength (N)	534
Minimum Loop Tensile Strength (lb)	120
Minimum Operating Temperature (°C)	-60
Minimum Operating Temperature (°F)	-76
Overall Length (In.)	14.8
Overall Length (mm)	376
Body Width (In.)	0.3
Body Width (mm)	7.6
Body Thickness (In.)	0.062
Body Thickness (mm)	1.6
Standards Met	CSA Certified, UL Compliant 62275 Type 1, UL Recognized (File #E56854), RoHS Complaint
