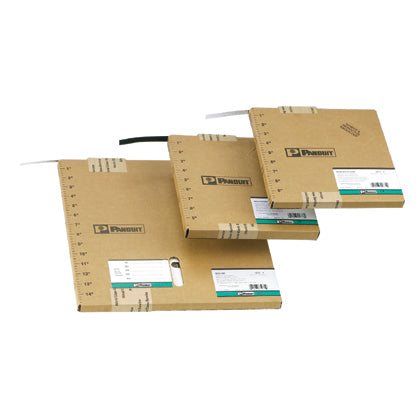

Panduit MSCNW50T15-QR6

Panduit® Pan-Steel® Custom Stainless Steel Strapping can be cut to meet your many project needs. Built with 316L stainless steel coated with Nylon with a fold-over lock, it maintains a safe, secure connection despite severe weather, intense UV rays, high

Mã kho: PAN437
Tên nhà sản xuất: Panduit
5.232.590₫ - 5.232.590₫
5.232.590₫
5.232.590₫ - 5.232.590₫
5.232.590₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Cable Bundling Straps Tools: Panduit MSCNW50T15-QR6

MÔ TẢ SẢN PHẨM

Panduit® Pan-Steel® Custom Stainless Steel Strapping can be cut to meet your many project needs. Built with 316L stainless steel coated with Nylon with a fold-over lock, it maintains a safe, secure connection despite severe weather, intense UV rays, high vibration and galvanic corrosion. Perfect for

_THÔNG SỐ KỸ THUẬT:

Application Corrosive Environment
Product Type Custom Length Stainless Steel Strapping
Color Black
Environment Indoor and Outdoor
Finish/Coating NA
For Use With BT2HT
Material 316 Stainless Steel
Maximum Installation Temperature (°C) 140
Maximum Installation Temperature (°F) 284
Minimum Installation Temperature (°C) -40
Minimum Installation Temperature (°F) -40
Maximum Operating Temperature (°C) 140
Maximum Operating Temperature (°F) 285
Minimum Operating Temperature (°C) -40
Minimum Operating Temperature (°F) -40
Minimum Loop Tensile Strength (N) 3115
Minimum Loop Tensile Strength (lb) 700
Overall Length (In.) 990
Overall Length (mm) 25000
Overall Width (In.) 0.5
Overall Width (mm) 12.7
Resistance Properties NA
Standards Met RoHS Compliant,UL E56854, UV Resistant
Sub Brand Pan-Steel
Strap Breaking Strength (N) 2979
Strap Breaking Strength (lb) 671
Overall Thickness (In.) 0.02
Overall Thickness (mm) 0.4
Part Features Fold over design provides high-retained tension in mechanical fastening and cable bundling applications; After tensioning, cut end is locked inside low profile buckle – no sharp edges; For applications that require various bundle diameters; Supplied in reels of 82.5 ft (25 m); Nylon Coated; Provides job site versatility with minimum inventory; Packaging speeds removal of steel and includes bundle diameter cut off guide.
