Panduit Wire Routing, Management & Protection, [JP2DW-L2]; PAH938

Name: Panduit Wire Routing, Management & Protection, [JP2DW-L2]; PAH938
Brand: Panduit
SKU: PAH938
Price: 180760.0 VND
Availability: InStock

Mã kho: PAH938

Mã nhà sản xuất: JP2DW-L2

Tên nhà sản xuất: Panduit

180.760₫ - 180.760₫

180.760₫

180.760₫ - 180.760₫

180.760₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Cable Conduit Supports / Cable Conduit Hangers: Panduit JP2DW-L2

MÔ TẢ SẢN PHẨM

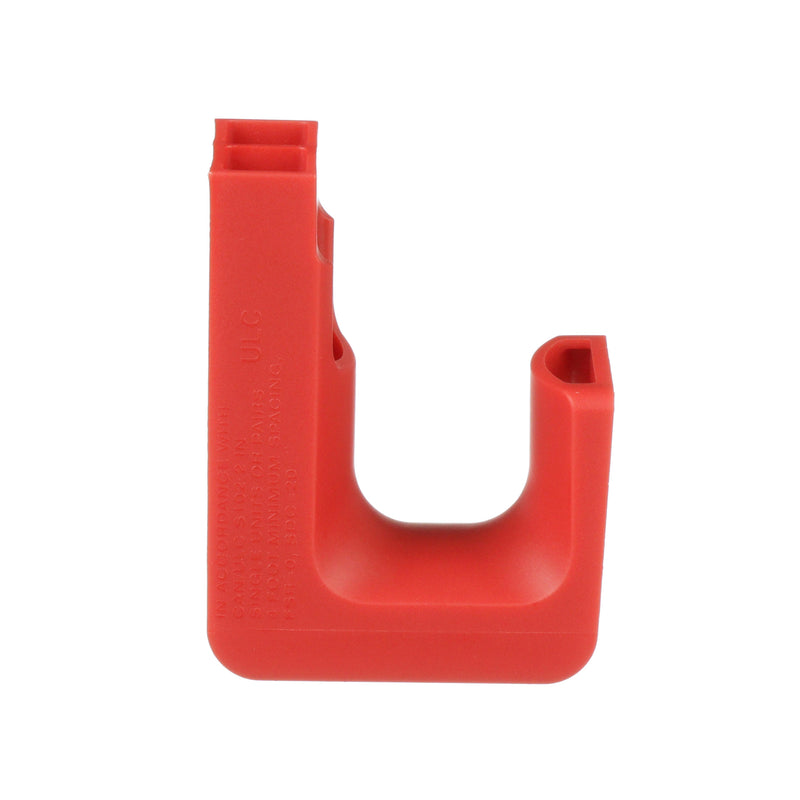

J-PRO Cable support system, with clip for use with #12 wire and threaded rod up to 3/8 (9.5mm) in diameter or 1/8 - 1/4 (3.2mm - 6.4mm), 2.00 (50.8mm) max. bundle capacity, nylon 6.6 with metal attachments, red, 50 pc. package quantity.

_THÔNG SỐ KỸ THUẬT:

Application	Route High Performance Communication Cabling in Air Handling Spaces
Product Type	J-Pro Cable Support
Category 5e Cable Capacity	55
Category 6 Cable Capacity	46
Color	Red
Finish/Coating	NA
For Use With	#12 Wire and Threaded Rod
Includes	Clip
Material	Nylon 6.6/Metal
Maximum Flange Thickness (In.)	0.37
Maximum Flange Thickness (mm)	9.5
Maximum J-Hook Bundle Capacity	50.08
Mount Method	Drop Wire
Overall Height (In.)	6
Overall Height (mm)	152.9
Overall Length (In.)	3.7
Overall Length (mm)	92.9
Overall Width (In.)	3.7
Overall Width (mm)	92.9
Sub Brand	J-Pro
Static Load Capacity (Kg)	4.53
Static Load Capacity (lb)	10
Support Type	J-PRO J-Hook System
