Panduit Wire Routing, Management & Protection, [JP2UF100-L20]; PAH955

Mã kho: PAH955
Mã nhà sản xuất: JP2UF100-L20
Tên nhà sản xuất: Panduit
Original price 146.140₫ - Original price 146.140₫
Original price
146.140₫
146.140₫ - 146.140₫
Current price 146.140₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Cable Conduit Supports / Cable Conduit Hangers: Panduit JP2UF100-L20

MÔ TẢ SẢN PHẨM

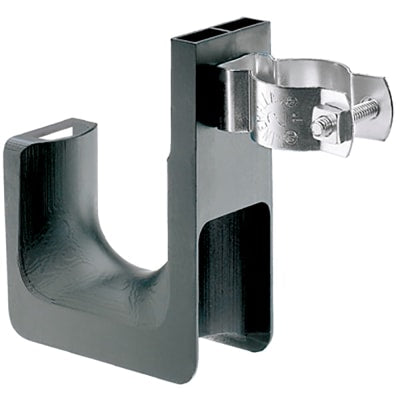

J-PRO Cable support system, with underfloor clamp for use with pedestal support 7/8 square or 1 1/8 - 1 3/8 in diameter, 2.00 (50.8mm) max. bundle capacity, nylon 6.6 with metal attachments, black, 50 pc. package quantity.

_THÔNG SỐ KỸ THUẬT:

Application Route High Performance Communication Cabling in Air Handling Spaces
Product Type J-Pro Cable Support
Category 5e Cable Capacity 55
Category 6 Cable Capacity 46
Category 6A Cable Capacity 30
Color Black
Finish/Coating NA
For Use With Pedestal Support
Includes Underfloor Clamp
Material Nylon 6.6/Metal
Maximum J-Hook Bundle Capacity 50.8
Mount Method NA
Overall Height (In.) 4.7
Overall Height (mm) 119.1
Overall Length (In.) 3.1
Overall Length (mm) 79.4
Overall Width (In.) 3.1
Overall Width (mm) 79.4
Sub Brand J-Pro
Static Load Capacity (Kg) 13.61
Static Load Capacity (lb) 100
Support Type J-PRO J-Hook System
Part Features Bend Radius Control, Smooth Pulling Surface
