Wire Routing Management Protection / Cable Conduit Supports / Cable Conduit Hangers: Panduit JP4SBC50RB-X

MÔ TẢ SẢN PHẨM

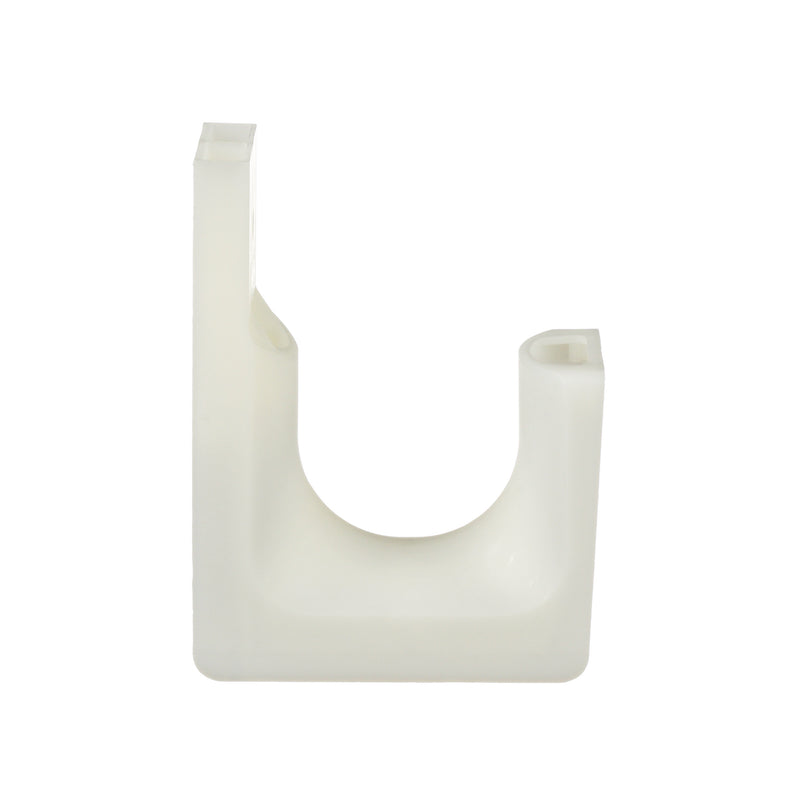

J-PRO Cable support system, with screw-on beam clamp for use with flanges up to 1/2 (12.7mm) thick, rotates 360 degrees, 4.00 (101.6mm) max. bundle capacity, nylon 6.6 with metal attachments, natural, 10 pc. package quantity.

_THÔNG SỐ KỸ THUẬT:

Application	Route High Performance Communication Cabling in Air Handling Spaces
Product Type	J-Pro Cable Support
Category 5e Cable Capacity	200
Category 6 Cable Capacity	180
Color	Natural
Finish/Coating	NA
For Use With	Flanges
Includes	Screw-On Beam Clamp
Material	Nylon 6.6/Metal
Maximum Flange Thickness (In.)	0.5
Maximum Flange Thickness (mm)	12.7
Maximum J-Hook Bundle Capacity	101.6
Mount Method	Screw-On Beam Clamp
Overall Height (In.)	9.95
Overall Height (mm)	252.9
Overall Length (In.)	8.49
Overall Length (mm)	215.5
Overall Width (In.)	8.49
Overall Width (mm)	215.5
Sub Brand	J-Pro
Static Load Capacity (Kg)	45.37
Static Load Capacity (lb)	50
Support Type	J-PRO J-Hook System
