Panduit Pan-Wrap™ Braided Expandable Sleeving, 1" diameter, black, polyethylene terephthalate, 100 ft. per reel. [SE100PS-CR0]; PAO826

Name: Panduit Pan-Wrap™ Braided Expandable Sleeving, 1" diameter, black, polyethylene terephthalate, 100 ft. per reel. [SE100PS-CR0]; PAO826
Brand: Panduit
SKU: PAO826
Price: 14125900.0 VND
Availability: InStock

Mã kho: PAO826

Mã nhà sản xuất: SE100PS-CR0

Tên nhà sản xuất: Panduit

14.125.900₫ - 14.125.900₫

14.125.900₫

14.125.900₫ - 14.125.900₫

14.125.900₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Abrasion Protection / Cable Sleeves Tools Wraps: Panduit SE100PS-CR0

MÔ TẢ SẢN PHẨM

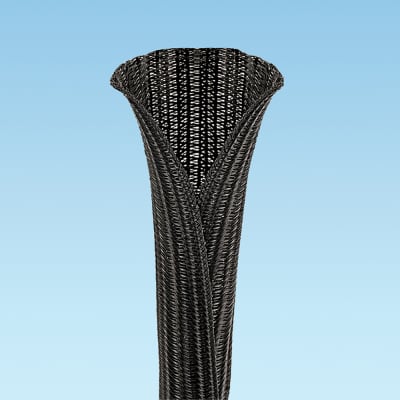

The SE100PS-CR0 Pan-Wrap Braided Sleeving allows for installation after wire or cable is routed and terminated. Ideal for applications where re-entry is required and provides continuous abrasion resistance for wires, cables, and tubing. The lightweight, durable protection is highly flexible, and the

_THÔNG SỐ KỸ THUẬT:

Application	Provides Continuous Abrasion Protection for Wires, Cables, Hoses, and Tubing; Highly Flexible Open Weave will not Trap Heat or Humidity; Allows for Use with Irregular Shapes; Lengthwise slit allows product to be installed over cable with ends already terminated.
Note	Slit down length of product; Compatible with PWT100 Tool
Sub Brand	Pan-Wrap™
Material	Polyethylene Terephthalate (PET)
Flammability Rating	UL94V-0
Color	Black
Resistance Properties	Abrasion-Resistant
Standards Met	CSA Certified; UL Recognized E116868; RoHS Compliant
Maximum Operating Temperature (°C)	125
Minimum Operating Temperature (°C)	-70
Maximum Operating Temperature (°F)	257
Minimum Operating Temperature (°F)	-94
Nominal Diameter (In.)	1
Nominal Diameter (mm)	25.4
Overall Length (ft.)	100
Overall Length (m)	30.5
Product Type	Pan-Wrap™ Braided Sleeving
Part Features	Allows for installation after wire or cable is routed and terminated, Ideal for applications where re-entry is required, Provides continuous abrasion resistance for wires cables, and tubing, Lightweight durable protection, Highly flexible open weave will not trap heat or humidity
Maximum Bundle Diameter (In.)	1
Maximum Bundle Diameter (mm)	25.4
Minimum Bundle Diameter (In.)	0.88
Minimum Bundle Diameter (mm)	22.35

Panduit Pan-Wrap™ Braided Expandable Sleeving, 1" diameter, black, polyethylene terephthalate, 100 ft. per reel. [SE100PS-CR0]; PAO826

MÔ TẢ SẢN PHẨM

_THÔNG SỐ KỸ THUẬT:
