Panduit SE125PFR-LR0

Panduit Wire Routing, Management & Protection, [SE125PFR-LR0]; PAI393

Mã kho: PAI393
Mã nhà sản xuất: SE125PFR-LR0
Tên nhà sản xuất: Panduit
5.421.170₫ - 5.421.170₫
5.421.170₫
5.421.170₫ - 5.421.170₫
5.421.170₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Abrasion Protection / Cable Sleeves Tools Wraps: Panduit SE125PFR-LR0

MÔ TẢ SẢN PHẨM

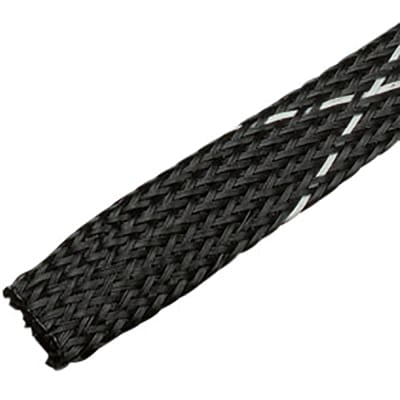

Braided Expandable Sleeving, 1.25" diameter (31.8mm), provides continuous abrasion resistance for wires, cables and tubing. The highly flexible open weave will not trap heat or humidity, black, Flame Retardant, Polyethylene Terephthalate, 50 ft. per reel.

_THÔNG SỐ KỸ THUẬT:

Application (1) Provides Continuous Abrasion Protection for Wires, Cables, Hoses, and Tubing; (2) Highly Flexible Open Weave will not Trap Heat or Humidity; (3) Allows for Use with Irregular Shapes
Material Flame Retardant Polyethylene Terephthalate (PET)
Flammability Rating UL 1441 VW-1
Color Black
Resistance Properties Flame-Retardant
Standards Met CSA Certified, Compliant with U.S. and European passenger rail standards, UL Recognized E116868; RoHS Complaint
Maximum Operating Temperature (°C) 125
Minimum Operating Temperature (°C) -70
Maximum Operating Temperature (°F) 257
Minimum Operating Temperature (°F) -94
Nominal Diameter (In.) 1.25
Nominal Diameter (mm) 31.8
Overall Length (ft.) 50
Overall Length (m) 15.2
Product Type Braided Expandable Sleeving
Part Features Provides continuous abrasion protection for wires, cables, hoses and tubing. Highly flexible open weave will not trap heat or humidity, allows for irregular shapes. Lightweight and durable protection. Complaint with U.S. and European passenger rail standards.
Maximum Bundle Diameter (In.) 1.5
Maximum Bundle Diameter (mm) 38.1
Minimum Bundle Diameter (In.) 0.75
Minimum Bundle Diameter (mm) 19.1
