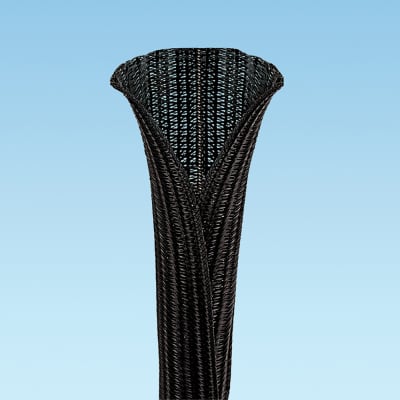

Panduit Pan-Wrap™ Braided Expandable Sleeving, 0.25" diameter, black, flame retardant, polyethylene terephthalate, 200 ft. per reel. [SE25PSFR-TR0]; PAO863

Name: Panduit Pan-Wrap™ Braided Expandable Sleeving, 0.25" diameter, black, flame retardant, polyethylene terephthalate, 200 ft. per reel. [SE25PSFR-TR0]; PAO863
Brand: Panduit
SKU: PAO863
Price: 13058120.0 VND
Availability: InStock

Mã kho: PAO863

Mã nhà sản xuất: SE25PSFR-TR0

Tên nhà sản xuất: Panduit

13.058.120₫ - 13.058.120₫

13.058.120₫

13.058.120₫ - 13.058.120₫

13.058.120₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Abrasion Protection / Cable Sleeves Tools Wraps: Panduit SE25PSFR-TR0

MÔ TẢ SẢN PHẨM

Pan-Wrap™ Braided Expandable Sleeving, 0.25" diameter, black, flame retardant, polyethylene terephthalate, 200 ft. per reel.

_THÔNG SỐ KỸ THUẬT:

Application	(1) Suited for the Challenging Applications Found in the Transportation and Marine Industries due to its Open Weave Design, Lack of Halogens, and Exceptional Flammability Performance. (2) Installation Tool Reduces Installation Time by Allowing Easy Loadin
Sub Brand	Pan-Wrap™
Material	Flame Retardant Polyethylene Terephthalate (PET)
Flammability Rating	UL 1441 VW-1
Color	Black
Resistance Properties	Flame-Retardant
Standards Met	CSA Certified, Flammability: Halogen Free RoHS, UL Recognized E116868
Maximum Operating Temperature (°C)	125
Minimum Operating Temperature (°C)	-70
Maximum Operating Temperature (°F)	257
Minimum Operating Temperature (°F)	-94
Nominal Diameter (In.)	0.25
Nominal Diameter (mm)	6.4
Overall Length (ft.)	200
Overall Length (m)	61
Product Type	Pan-Wrap™ Braided Sleeving
Part Features	Allows for installation after wire or cable is routed and terminated, Ideal for applications where re-entry is required, Provides continuous abrasion resistance for wires cables, and tubing, Lightweight durable protection, Highly flexible open weave will not trap heat or humidity
Maximum Bundle Diameter (In.)	0.26
Maximum Bundle Diameter (mm)	6.35
Minimum Bundle Diameter (In.)	0.19
Minimum Bundle Diameter (mm)	4.83

Panduit Pan-Wrap™ Braided Expandable Sleeving, 0.25" diameter, black, flame retardant, polyethylene terephthalate, 200 ft. per reel. [SE25PSFR-TR0]; PAO863

MÔ TẢ SẢN PHẨM

_THÔNG SỐ KỸ THUẬT:
