Panduit SE38PFR-MR0

Panduit Braided Sleeving, [SE38PFR-MR0]; PAF156

Mã kho: PAF156
Mã nhà sản xuất: SE38PFR-MR0
Tên nhà sản xuất: Panduit
36.609.550₫ - 36.609.550₫
36.609.550₫
36.609.550₫ - 36.609.550₫
36.609.550₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Abrasion Protection / Cable Sleeves Tools Wraps: Panduit SE38PFR-MR0

MÔ TẢ SẢN PHẨM

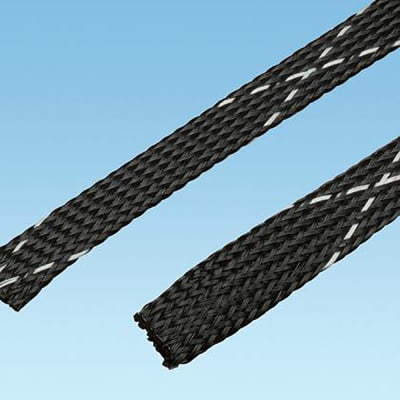

The SE38PFR-MR0 Braided Sleeving provides continuous abrasion resistance for wires, cables, and tubing. The lightweight, durable protection is highly flexible. The open weave will not trap heat or humidity. Complaint with U.S. and European passenger rail standards. Temperature range: -94°F – 257°F (

_THÔNG SỐ KỸ THUẬT:

Application Provides Continuous Abrasion Protection for Wires, Cables, Hoses, and Tubing; Highly Flexible Open Weave will not Trap Heat or Humidity; Allows for Use with Irregular Shapes
Material Flame Retardant Polyethylene Terephthalate (PET)
Flammability Rating UL 1441 VW-1
Color Black
Resistance Properties Flame-Retardant
Standards Met CSA Certified, Compliant with U.S. and European passenger rail standards EN-45545, UL Recognized E116868; RoHS Complaint
Maximum Diameter (In.) 0.5
Maximum Diameter (mm) 12.7
Maximum Operating Temperature (°C) 125
Minimum Operating Temperature (°C) -70
Maximum Operating Temperature (°F) 257
Minimum Operating Temperature (°F) -94
Nominal Diameter (In.) 0.38
Nominal Diameter (mm) 9.5
Overall Length (ft.) 1000
Overall Length (m) 304.8
Product Type Braided Expandable Sleeving
Part Features Provides continuous abrasion protection for wires, cables, hoses and tubing. Highly flexible open weave will not trap heat or humidity, allows for irregular shapes. Lightweight and durable protection. Complaint with U.S. and European passenger rail standards.
Maximum Bundle Diameter (In.) 0.5
Maximum Bundle Diameter (mm) 12.7
Minimum Bundle Diameter (In.) 0.188
Minimum Bundle Diameter (mm) 4.8
