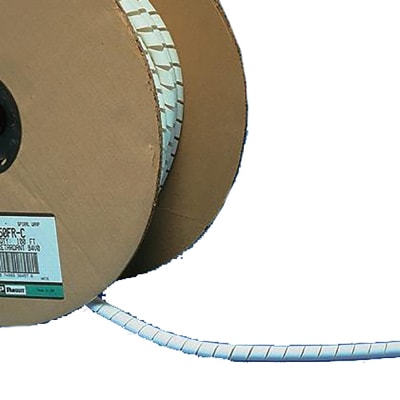

Panduit T75FR-TY

Panduit Spiral Wrap, offers abrasion protection for wires, cables, hoses and tubing, .75" (19.1mm) x 250', flame retardant polyethylene, natural, bulk package. [T75FR-TY]; PAP277

Mã kho: PAP277
Mã nhà sản xuất: T75FR-TY
Tên nhà sản xuất: Panduit
21.616.860₫ - 21.616.860₫
21.616.860₫
21.616.860₫ - 21.616.860₫
21.616.860₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Abrasion Protection / Cable Sleeves Tools Wraps: Panduit T75FR-TY

MÔ TẢ SẢN PHẨM

Spiral Wrap, offers abrasion protection for wires, cables, hoses and tubing, .75" (19.1mm) x 250', flame retardant polyethylene, natural, bulk package.

_THÔNG SỐ KỸ THUẬT:

Application (1) Harness Multiple Cables Into a Single Manageable Bundle (2) Allows Breakouts of Single/Multiple Cables (3) Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
Note T75FR-TY replaces T75FR-T
Product Type Spiral Wrap
Color Natural
Flammability Rating UL94V-0
Includes Installation Tool
Material Flame Retardant Polyethylene
Resistance Properties Flame Resistance
Maximum Bundle Diameter (In.) 5
Maximum Bundle Diameter (mm) 127
Maximum Operating Temperature (°C) 50
Maximum Operating Temperature (°F) 122
Minimum Bundle Diameter (In.) 0.625
Minimum Bundle Diameter (mm) 15.9
Minimum Operating Temperature (°C) -20
Minimum Operating Temperature (°F) -4
Outer Diameter (In.) 0.75
Outer Diameter (mm) 19
Overall Length (ft.) 200
Overall Length (m) 61
Standards Met UL Recognized E141152
Wall Thickness (In.) 0.06
Wall Thickness (mm) 1.6
Part Features Allows breakouts of single/multiple cables, Provides abrasion protection for wire, cables, hoses and tubing. Multiple colors allow for easy identification of cable bundles. Installation tool is supplied and the spiral wrap is reusable.
