Panduit T75NZFR-C20

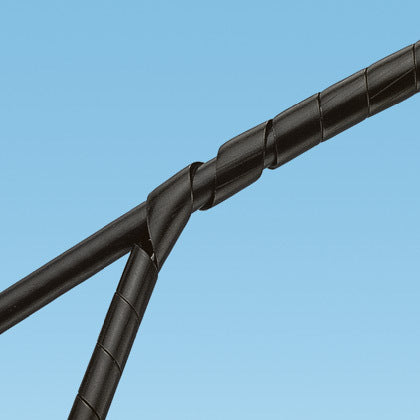

Panduit Spiral Wrap, Low Smoke/Halogen-Free Nylon 6.6 in black, Offers abrasion protection for wires, cables and hoses, 0.75" (19.1mm) x 100'. [T75NZFR-C20]; PAP281

Mã kho: PAP281
Mã nhà sản xuất: T75NZFR-C20
Tên nhà sản xuất: Panduit
18.410.230₫ - 18.410.230₫
18.410.230₫
18.410.230₫ - 18.410.230₫
18.410.230₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Abrasion Protection / Cable Sleeves Tools Wraps: Panduit T75NZFR-C20

MÔ TẢ SẢN PHẨM

Spiral Wrap, Low Smoke/Halogen-Free Nylon 6.6 in black, Offers abrasion protection for wires, cables and hoses, 0.75" (19.1mm) x 100'.

_THÔNG SỐ KỸ THUẬT:

Application (1) Harness Multiple Cables Into a Single Manageable Bundle (2) Allows Breakouts of Single/Multiple Cables (3) Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
Product Type Spiral Wrap
Color Black
Flammability Rating UL94V-0
Includes Installation Tool
Material Low Smoke Halogen-Free Flame Retardant Nylon 6
Resistance Properties Abrasion Protection
Maximum Bundle Diameter (In.) 5
Maximum Bundle Diameter (mm) 127
Maximum Operating Temperature (°C) 65
Maximum Operating Temperature (°F) 149
Minimum Bundle Diameter (In.) 0.625
Minimum Bundle Diameter (mm) 15.9
Minimum Operating Temperature (°C) -40
Minimum Operating Temperature (°F) -40
Outer Diameter (In.) 0.75
Outer Diameter (mm) 19
Overall Length (ft.) 100
Overall Length (m) 30.5
Standards Met UL Recognized- E141152
Wall Thickness (In.) 0.04
Wall Thickness (mm) 1
Part Features Allows breakouts of single/multiple cables, Provides abrasion protection for wire, cables, hoses and tubing. Multiple colors allow for easy identification of cable bundles. Installation tool is supplied and the spiral wrap is reusable.
