Panduit MTP5H-E10-C

Panduit Cable & Wire Ties, Mounts & Straps, [MTP5H-E10-C]; PAF225

Mã kho: PAF225
Mã nhà sản xuất: MTP5H-E10-C
Tên nhà sản xuất: Panduit
124.390₫ - 124.390₫
124.390₫
124.390₫ - 124.390₫
124.390₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Cable Tie Mounts: Panduit MTP5H-E10-C

MÔ TẢ SẢN PHẨM

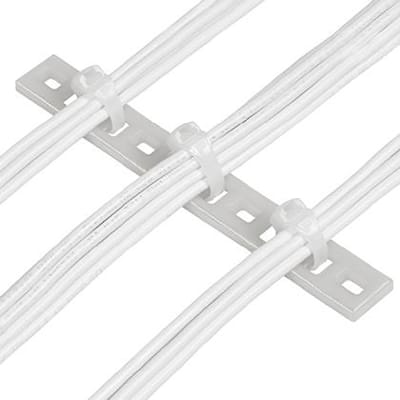

The multiple tie plate in natural color supports five bundles and is used with miniature, intermediate, standard, heavy-standard, light-heavy, and heavy cable ties. It uses #10 (M5) screws and is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is d

_THÔNG SỐ KỸ THUẬT:

Application Low Profile Multiple Tie Plates Used to Secure Closely Spaced Wire Bundles
Product Type Cable Tie Mount
Color Natural
Flammability Rating UL94V-2
Environment Indoor
Material Nylon 6.6
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Mount Method Screw
Mounting Hole Thread Size #10
Overall Height (In.) 7.5
Overall Height (mm) 190.5
Overall Length (In.) 8.09
Overall Length (mm) 205.5
Overall Width (In.) 0.62
Overall Width (mm) 50.3
Standards Met UL Recognized: E136577,CE Compliant, RoHS Compliant
Sub Brand NA
For Use With Miniature, Intermediate, Standard, Light Heavy, Heavy Cross-Section Ties
