Panduit PWMS-H25-C

Panduit Wire Routing, Management & Protection, [PWMS-H25-C]; PAI386

Mã kho: PAI386
Mã nhà sản xuất: PWMS-H25-C
Tên nhà sản xuất: Panduit
9.000₫ - 9.000₫
9.000₫
9.000₫ - 9.000₫
9.000₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Cable Tie Mounts: Panduit PWMS-H25-C

MÔ TẢ SẢN PHẨM

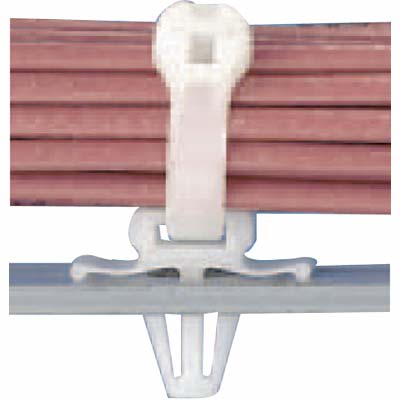

Panduit PWMS-H25-C Fir Winged Push Barb Mounts have a winged base that applies pressure on the panel wall to provide a more secure mount in high vibration application. Mounts are inserted int a 0.25” (6.5mm) pre-drilled hole. For use in indoor environments with miniature, intermediate and standard c

_THÔNG SỐ KỸ THUẬT:

Application Push Barb Cable Tie Mounts Wing Provides Added Stability and Can be Used where Only One Side of the Panel is Accessible
Product Type Cable Tie Mount
Color Natural
Environment Indoor
Material Nylon 6.6
Maximum Compatible Panel Thickness (In.) 0.11
Maximum Compatible Panel Thickness (mm) 2.8
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Mount Method Push Barb
Overall Height (In.) 0.62
Overall Height (mm) 15.7
Overall Length (In.) 0.71
Overall Length (mm) 18
Overall Width (In.) 0.37
Overall Width (mm) 9.3
Standards Met CE Compliant,UL Recognized: E136577, RoHS Compliant
For Use With Miniature, Intermediate, Standard Cross-Section Ties
