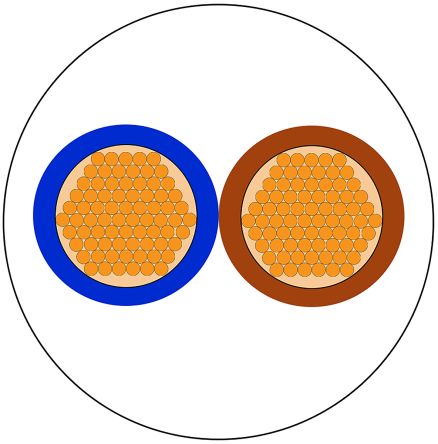

RS PRO 2 Core 0.75 mm² Mains Power Cable, White Polyvinyl Chloride PVC Sheath 100m, 6 A 300 V, 2182Y H03VV-F; 491-875
Mã kho: 491875
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 2 |
| Cross Sectional Area | 0.75 mm² |
| Sheath Colour | White |
| Current Rating | 0.25 |
| Length | 100m |
| Voltage Rating | 300 V |
| Outer Diameter | 6.3mm |
| Sheath Material | Polyvinyl Chloride PVC |
| Type | 2182Y |
| Minimum Operating Temperature | -15°C |
| Maximum Operating Temperature | +70°C |
| Conductor Strand Type | Stranded |
| Harmonised Code | H03VV-F |
| Core Strands | 24/0.2 mm |
| American Wire Gauge | 18 AWG |
| Conductor Resistance | 26 Ω/km |
| Insulation Material | PVC |
| Size of Strands | 0.2 mm |
| Conductor Material | Copper |
| Standards Met | BS EN 50525 |
| Number of Strands | 24 |
