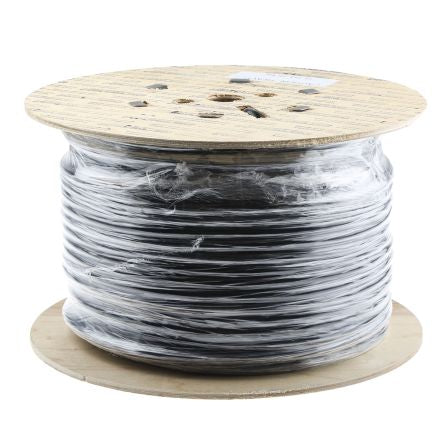

RS PRO 3 Core 2.5 mm² Mains Power Cable, Black Polyvinyl Chloride PVC Sheath 100m, 20 A 500 V, 3183Y H05VV-F; 491-954
Mã kho: 491954
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 3 |
| Cross Sectional Area | 2.5 mm² |
| Sheath Colour | Black |
| Current Rating | 20 A |
| Length | 100m |
| Voltage Rating | 500 V |
| Outer Diameter | 11.4mm |
| Sheath Material | Polyvinyl Chloride PVC |
| Type | 3183Y |
| Minimum Operating Temperature | -15°C |
| Maximum Operating Temperature | +70°C |
| Conductor Strand Type | Stranded |
| Harmonised Code | H05VV-F |
| Standards Met | BS EN 50525 |
| Insulation Material | PVC |
| American Wire Gauge | 13 |
| Conductor Resistance | 7.98 Ω/km |
| Core Strands | 48/0.22 mm |
| Conductor Material | Copper |
| Size of Strands | 0.22 mm |
| Number of Strands | 48 |
