RS PRO 2 Core 1 mm² Mains Power Cable, Black CPE Sheath 100m, 17 A 450 V, 750 V, H07RN-F; 773-9020
Mã kho: 7739020
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 2 |
| Cross Sectional Area | 1 mm² |
| Sheath Colour | Black |
| Current Rating | 17 A |
| Length | 100m |
| Voltage Rating | 450 V, 750 V |
| Outer Diameter | 8.3mm |
| Sheath Material | CPE |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +60°C |
| Conductor Strand Type | Stranded |
| Harmonised Code | H07RN-F |
| Insulation Material | EPR |
| Conductor Resistance | 19.5 Ω/km |
| American Wire Gauge | 17 AWG |
| Number of Strands | 32 |
| Size of Strands | 0.19 mm |
| Conductor Material | Copper |

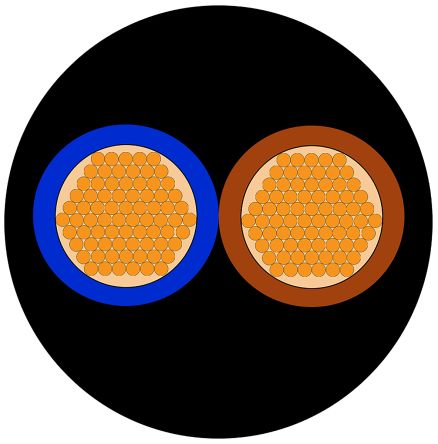

| Core Strands | 32/0.19 mm |
| Fire Behaviour | Flame Retardant |
| Standards Met | Euroclass Eca |
