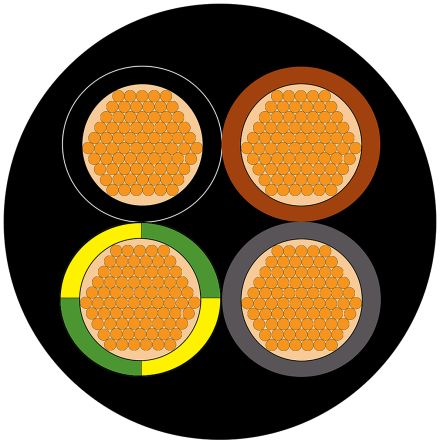

RS PRO 4 Core 1.5 mm² Mains Power Cable, Cross-Linked Compound, Type EM 8 to EN 50363-6 Sheath 100, 750 V, H07ZZ-F; 836-0707
Mã kho: 8360707
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 4 |
| Cross Sectional Area | 1.5 mm² |
| Length | 100 |
| Voltage Rating | 750 V |
| Outer Diameter | 10.2 → 13.1mm |
| Sheath Material | Cross-Linked Compound, Type EM 8 to EN 50363-6 |
| Minimum Operating Temperature | -5°C |
| Maximum Operating Temperature | +90°C |
| Conductor Strand Type | Stranded |
| Harmonised Code | H07ZZ-F |
| American Wire Gauge | 15 AWG |
| Insulation Material | Cross Linked |
| Conductor Resistance | 13.3 Ω/km |
| Standards Met | Euroclass Eca |
| Core Strands | 27/0.25 mm |
| Conductor Material | Copper |
| Size of Strands | 0.25 mm |
| Number of Strands | 27 |
