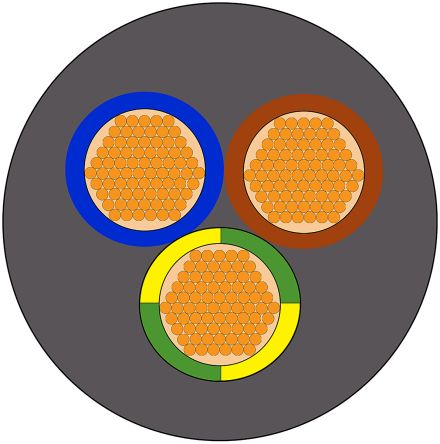

RS PRO BASEC 3 Core 0.75 mm² Power Cable, Polyvinyl Chloride PVC Sheath 100, 300 V, 2183Y H03VV-F; 841-2256
Mã kho: 8412256
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 3 |
| Cross Sectional Area | 0.75 mm² |
| Length | 100 |
| Voltage Rating | 300 V |
| Outer Diameter | 5.97mm |
| Sheath Material | Polyvinyl Chloride PVC |
| Type | 2183Y |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | 70°C |
| Conductor Strand Type | Stranded |
| Harmonised Code | H03VV-F |
| Insulation Material | PVC |
| Conductor Resistance | 26 Ω/km |
| Standards Met | BASEC, IEC 60227-5, IEC 60228 Class 5, RoHS Compliant, TS 9760 HD 21.5.S3, VDE 0281-5 |
| American Wire Gauge | 18 AWG |
| Conductor Material | Copper |
