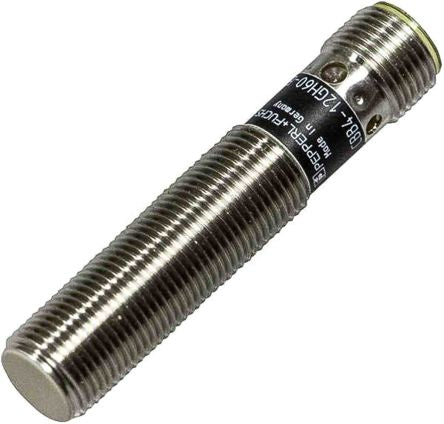

Pepperl + Fuchs Capacitive Proximity Sensor Amplifier 4 mm length 59.8mm PNP supply voltage 10 → 36 V dc IP65 [CBB4-12GH60-E2-V1]; 184-8808
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M12 x 1 |
| Output Type | PNP-NO |
| Detection Range | 4 mm |
| Supply Voltage | 10 → 36 V dc |
| Terminal Type | M12 - 4 Pin |
| IP Rating | IP65 |
| Maximum DC Voltage | 36V |
| Mounting Style | Flush |
| Length | 59.8mm |
| Switching Current | 100 mA |
| Reverse Polarity Protection | Yes |
| Maximum Operating Temperature | +70°C |
| Switching Frequency | 50 Hz |
| Standards Met | CCSAus Listed, CE Certified, CULus Listed, EN 60947-5-2, IEC 60947-5-2 |
| Minimum Operating Temperature | -25°C |
| Short Circuit Overload Protection | Yes |
| Housing Material | Stainless Steel |
