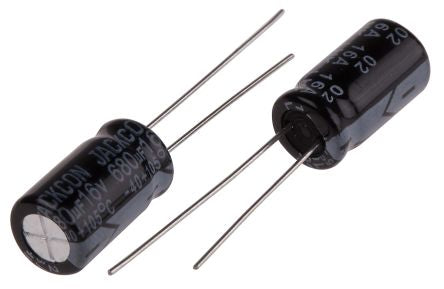

RS PRO 680μF 16V dc Aluminium Electrolytic Capacitor, Through Hole 8 (Dia.) x 14mm +105°C 8mm 3.5mm 14mm; 170-1173
Mã kho: 1701173
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 680 µF |
| Voltage | 16 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 8 (Dia.) x 14mm |
| Height | 14mm |
| Length | 14mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 8mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 2000h |
| Lead Pitch | 3.5mm |
| Series | RS |
| Tolerance | ±20% |
| Dissipation Factor | 0.16 |
| Polarised | Polar |
| Ripple Current | 470mA |
| Leakage Current | <=0.01 CV or 3 μA @ 1 min |
