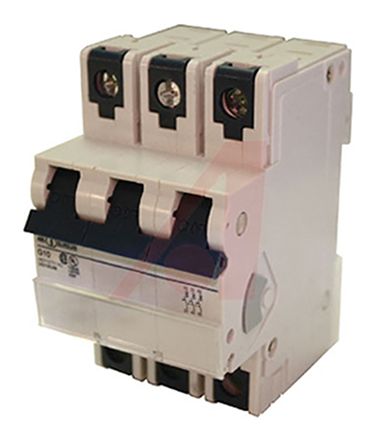

Altech 20A 3 Pole Thermal Magnetic Circuit Breaker, 480Y/277V V-EA [3C20UM]; 899-4580
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Current Rating | 20A |
| Number of Poles | 3 |
| Voltage Rating | 480Y/277V |
| Series | V-EA |
| Overall Length | 93.3mm |
| Application | AC Discharge Lamps (Ballast), AC General Use, AC Incandescent Lamps (Tungsten), AC Motor Starting, AC Resistance, Across the Line, Appliances, Business Equipment, Control Circuit Applications, Lighting, Low Inrush Motors, UL508 Application, Wiring Protection |
| Breaking Capacity at Maximum Voltage Rating | 10 kA |
| Tripping Characteristics | Type C |
| Overall Depth | 74.7mm |
| Tripping Mechanism | Thermal-Magnetic |
| Mounting Style | DIN Rail Mount |
| Rated AC Voltage | 480Y/277V |
| Special Features | IP20 Terminal Protection |
| Circuit Breaker Type | MCCB |
| Break Time | Time Delay |
| Reset Actuator Type | Handle |
| Terminal Contact Type | Box Clamp, Ring Tongue Terminal |
| Overall Dimensions | 93.3 x 52.5 x 74.7mm |
