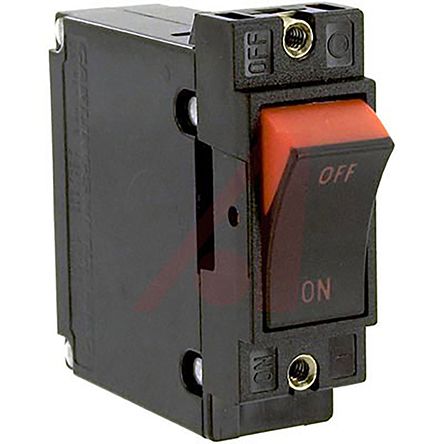

Carling Technologies 10A 1 Pole Thermal Magnetic Circuit Breaker, 80 V dc, 277 V ac A [AC1-B0-34-610-1G1-C]; 881-4725
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Current Rating | 10A |
| Number of Poles | 1 |
| Series | A |
| Overall Depth | 61.7mm |
| Mounting Hole Size | 19.05 x 42.16mm |
| Break Time | Medium |
| Terminal Contact Type | Quick Connect |
| Overall Dimensions | 18.92 x 50.8 x 61.73mm |
| Reset Actuator Type | Rocker |
| Rated DC Voltage | 80V |
| Special Features | Meets IP68 Requirement, Specially Constructed Version Available For Applications Requiring CE Markings, The Metal Toggle Option was Tested to MIL-PRF-55629C for Ingress Protection When Mounted in a Panel |
| Tripping Mechanism | Hydraulic-Magnetic |
| Breaking Capacity at Maximum Voltage Rating | 5000 A @ 80 V dc |
| Mounting Hole Length | 19.1mm |
| Overall Length | 18.9mm |
| Mounting Hole Width | 42.2mm |
| Application | Generators, Marine Applications, Military, Renewable Energy Systems, Telecommunications, Welder |
| Mounting Style | Panel Mount |
