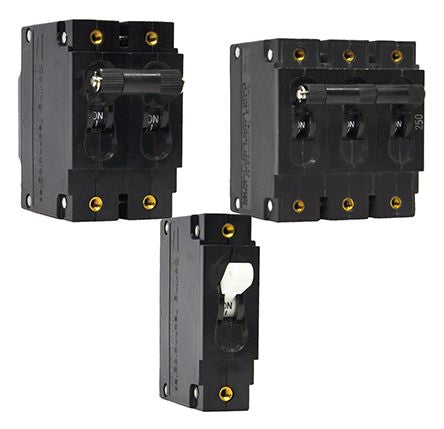

Carling Technologies 10A 2 Pole Thermal Magnetic Circuit Breaker, 80 V dc, 277 V ac A [AF2-B0-24-610-112-D]; 881-4759
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Current Rating | 10A |
| Number of Poles | 2 |
| Series | A |
| Mounting Style | Panel Mount |
| Breaking Capacity at Maximum Voltage Rating | 5000 A @ 80 V dc |
| Overall Depth | 61.7mm |
| Overall Length | 38.5mm |
| Overall Dimensions | 38.48 x 50.8 x 61.73mm |
| Application | Generators, Marine Applications, Military, Renewable Energy Systems, Telecommunications, Welder |
| Tripping Mechanism | Hydraulic-Magnetic |
| Terminal Contact Type | Quick Connect |
| Break Time | Medium |
| Reset Actuator Type | Rocker |
| Rated DC Voltage | 80V |
| Special Features | Meets IP68 Requirement, Specially Constructed Version Available For Applications Requiring CE Markings, The Metal Toggle Option was Tested to MIL-PRF-55629C for Ingress Protection When Mounted in a Panel |
