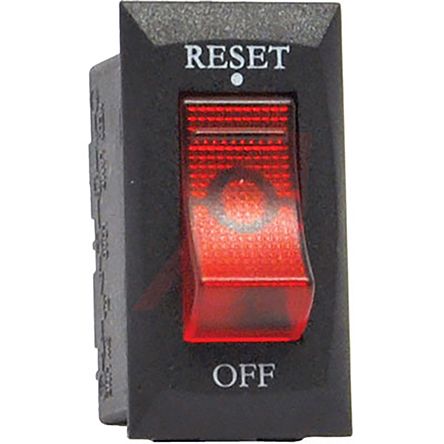

Carling Technologies 10A Thermal Magnetic Circuit Breaker, 32 V dc, 250 V ac C1005B [C1005B-3B101BR3]; 881-4920
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Current Rating | 10A |
| Series | C1005B |
| Breaking Capacity at Maximum Voltage Rating | 1000 A |
| Overall Length | 28mm |
| Mounting Hole Width | 28.6mm |
| Application | Audio Visual Equipment, Commercial Applications, Generators, Household Appliances, Marine Applications, Medical Equipment, Power Strips, Power Supplies, Telecommunications, Transportation |
| Mounting Style | Panel Mount |
| Overall Depth | 23.4mm |
| Tripping Mechanism | Thermal |
| Mounting Hole Size | 14 x 28.6mm |
| Mounting Hole Length | 14mm |
| Overall Dimensions | 28 x 13.5 x 23.4mm |
| Reset Actuator Type | Rocker |
| Rated DC Voltage | 32V |
| Rated AC Voltage | 250V |
| Special Features | Aesthetically pleasing Curved Rocker & Angular Bezel, Compact Space-saving Envelope, Standard Reset/Off Legend |
| Terminal Contact Type | Tab |
| Break Time | Time Delayed |
