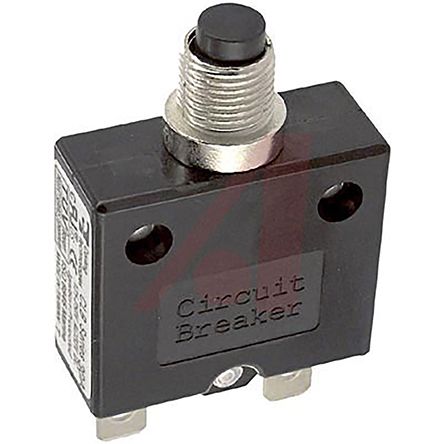

Carling Technologies 60A 1 Pole Thermal Magnetic Circuit Breaker, 32 V dc, 250 V ac CLB [CLB-603-12C3N-B-F/60]; 881-1091
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Current Rating | 60A |
| Number of Poles | 1 |
| Series | CLB |
| Overall Depth | 45.6mm |
| Tripping Mechanism | Thermal |
| Mounting Hole Size | 10 x 11.2mm |
| Mounting Hole Length | 10mm |
| Overall Dimensions | 35 x 14.5 x 45.59mm |
| Reset Actuator Type | Button |
| Rated DC Voltage | 32V |
| Mounting Hole Width | 11.2mm |
| Application | Audio Visual Equipment, Household Appliances, Marine Applications, Medical Equipment, Power Strips, Power Supplies, Transportation |
| Breaking Capacity at Maximum Voltage Rating | 2500 A @ 32 V dc |
| Mounting Style | Panel Mount |
| Overall Length | 35mm |
| Terminal Contact Type | Pin |
| Rated AC Voltage | 250V |
| Special Features | A Compact Single Pole Push to reset Family Of Thermal Circuit Breaker |
| Break Time | Time Delayed |
