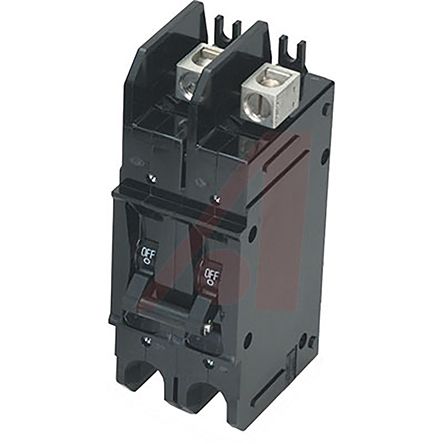

Carling Technologies 40A 2 Pole Thermal Magnetic Circuit Breaker, 125 V dc, 600 V ac E [EA2-B0-26-640-32E-HB]; 881-1293
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Current Rating | 40A |
| Number of Poles | 2 |
| Series | E |
| Mounting Hole Size | 53.15 x 69.85mm |
| Tripping Mechanism | Hydraulic-Magnetic |
| Mounting Hole Length | 53.2mm |
| Mounting Style | Panel Mount |
| Application | Generators, Ideal for Higher Current and Voltage Applications, Industrial Appliances, Military, Renewable Energy Systems |
| Overall Depth | 82.8mm |
| Mounting Hole Width | 69.9mm |
| Breaking Capacity at Maximum Voltage Rating | 5000 A @ 125 V dc, 5000 A @ 240 Vac |
| Overall Length | 79.7mm |
| Special Features | Certified for Circuit Branch Protection, CSA, Optional Power Selector Device, Recognized as a Manual Motor Controller, Recognized as a Supplementary Protector, UL |
| Break Time | Long |
| Terminal Contact Type | Box Wire Connector |
| Circuit Breaker Type | MCCB |
| Rated DC Voltage | 125V |
| Rated AC Voltage | 600V |
| Reset Actuator Type | Handle |
| Overall Dimensions | 79.7 x 130.18 x 82.84mm |
