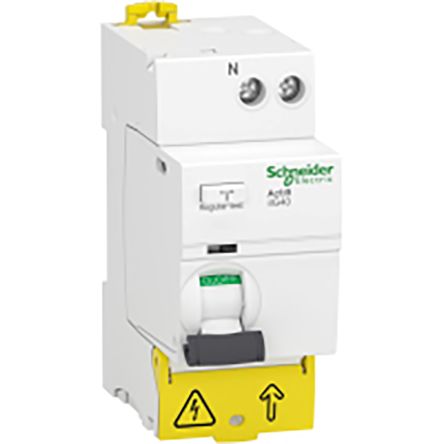

Acti9 iIG40 - residual current circuit b [A9R67625]; 191-6125
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Current Rating | 25A |
| Number of Poles | 1P+N |
| Range | Acti 9 |
| Trip Sensitivity | 30mA |
| Tripping Characteristics | Type AC |
| Voltage Rating | 220 → 240V ac |
| Overall Width | 74mm |
| Overall Depth | 85mm |
| Overall Dimensions | 36 x 74 x 85mm |
| Earth Leakage Protection Type | AC |
| Overall Length | 36mm |
| Circuit Breaker Type | RCCB |
| Breaking Capacity at Maximum Voltage Rating | 1500 A |
| Rated AC Voltage | 220 → 240V |
| Break Time | Instantaneous |
| Mounting Style | DIN Rail Mount |
