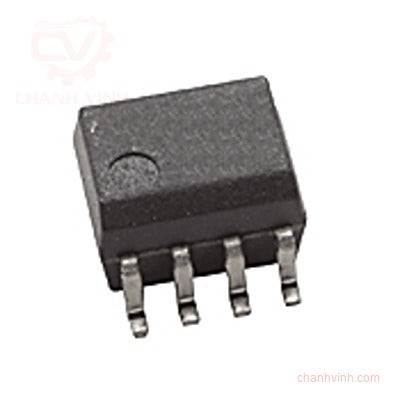

Broadcom, HCPL-0201-500E AC Input Open Collector Output Optocoupler, Surface Mount, 8-Pin Tubular [HCPL-0201-500E]; 242-545

The Broadcom Optocoupler is an optically-coupled logic gate. It contains an GaAsP LED. The detectors have totem pole output stages and optical receiver input stages with built-in Schmitt triggers to provide logic-compatible waveforms, illuminating the need for additional waveshaping.

Hysteresis

CSA Approved

Totem pole output (no pull-up resistor required)
