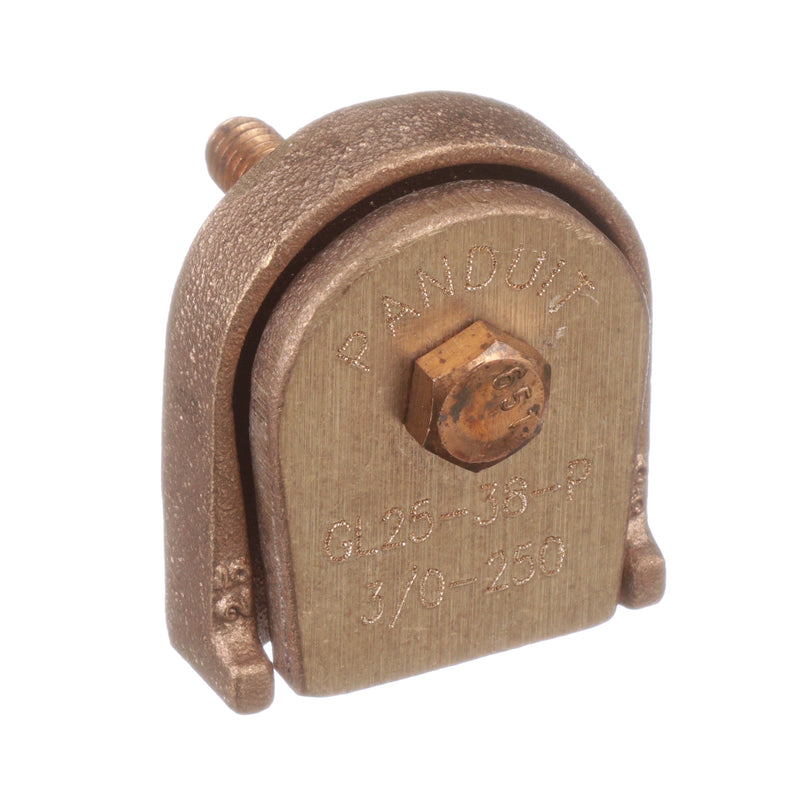

Panduit 3/0 AWG (Str.) - 250 kcmil (Str.) Bronze Ground Clamp Connector, 3/8" Stud, 2 Piece Clamp & 1 Bolt [GL250-38-5]; PAL681

Name: Panduit 3/0 AWG (Str.) - 250 kcmil (Str.) Bronze Ground Clamp Connector, 3/8" Stud, 2 Piece Clamp & 1 Bolt [GL250-38-5]; PAL681
Brand: Panduit
SKU: PAL681
Availability: InStock

Mã kho: PAL681

Mã nhà sản xuất: GL250-38-5

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Grounding Bonding / Grounding Mechanical Connectors / Flat Surface Grounding Clamps: Panduit GL250-38-5

MÔ TẢ SẢN PHẨM

3/0 AWG (Str.) - 250 kcmil (Str.) Bronze Ground Clamp Connector, 3/8" Stud, 2 Piece Clamp & 1 Bolt

_THÔNG SỐ KỸ THUẬT:

Sub Brand	NA
Product Type	Grounding Clamp
Material	Copper Alloy
Maximum Compatible Conductor Size (AWG SOL)	NA
Maximum Compatible Conductor Size (AWG STR)	NA
Maximum Compatible Conductor Size (AWG)	NA
Maximum Compatible Conductor Size (kcmil)	250
Hex Size (In.)	NA
Minimum Compatible Conductor Size (AWG SOL)	NA
Minimum Compatible Conductor Size (AWG STR)	3/0
Minimum Compatible Conductor Size (AWG)	NA
Overall Length (In.)	2.46
Overall Length (mm)	63
Overall Width (In.)	2.15
Overall Width (mm)	55
Overall Height (In.)	2.5
Overall Height (mm)	64
Standards Met	cULus Listed to UL467/CSA 22.2 No.4 for Direct Burial Grounding
Application	Utility/Ground Grid

Panduit 3/0 AWG (Str.) - 250 kcmil (Str.) Bronze Ground Clamp Connector, 3/8" Stud, 2 Piece Clamp & 1 Bolt [GL250-38-5]; PAL681
