Panduit Bronze grounding toe clamp, 1 Cable to Bar or Flat surface, 300 kcmil - 500 kcmil [GMS-4-X]; PAL692

Name: Panduit Bronze grounding toe clamp, 1 Cable to Bar or Flat surface, 300 kcmil - 500 kcmil [GMS-4-X]; PAL692
Brand: Panduit
SKU: PAL692
Availability: InStock

Mã kho: PAL692

Mã nhà sản xuất: GMS-4-X

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Grounding Bonding / Grounding Mechanical Connectors / Flat Surface Grounding Clamps: Panduit GMS-4-X

MÔ TẢ SẢN PHẨM

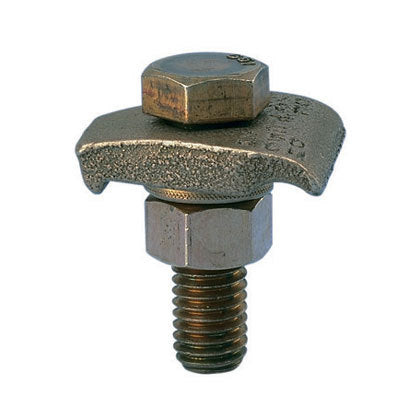

Bronze grounding toe clamp, 1 Cable to Bar or Flat surface, 300 kcmil - 500 kcmil

_THÔNG SỐ KỸ THUẬT:

Sub Brand	NA
Product Type	Grounding Clamp
Material	Copper Alloy
Maximum Compatible Conductor Size (AWG SOL)	NA
Maximum Compatible Conductor Size (AWG STR)	NA
Maximum Compatible Conductor Size (AWG)	NA
Maximum Compatible Conductor Size (kcmil)	500
Hex Size (In.)	3/4
Minimum Compatible Conductor Size (AWG SOL)	NA
Minimum Compatible Conductor Size (AWG STR)	NA
Minimum Compatible Conductor Size (AWG)	NA
Minimum Compatible Conductor Size (kcmil)	300
Overall Length (In.)	2.38
Overall Length (mm)	60
Overall Width (In.)	1.63
Overall Width (mm)	41
Overall Height (In.)	2.5
Overall Height (mm)	63
Standards Met	cULus Listed to UL467/CSA 22.2 No.4 for Direct Burial Grounding
Application	Utility/Ground Grid
