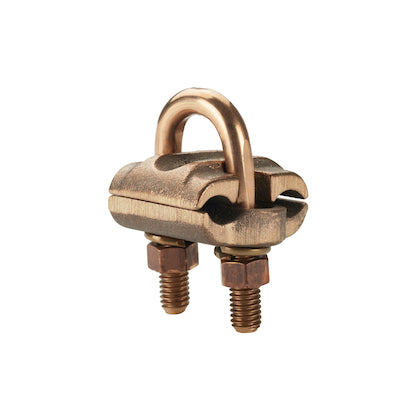

Panduit Bronze grounding clamp, U-bolt for 2 cables, #4 SOL - 2/0 STR copper conductor size range, 3/8” (9.5mm) iron pipe size. [GPC22/0-38-X]; PAL701

Name: Panduit Bronze grounding clamp, U-bolt for 2 cables, #4 SOL - 2/0 STR copper conductor size range, 3/8” (9.5mm) iron pipe size. [GPC22/0-38-X]; PAL701
Brand: Panduit
SKU: PAL701
Price: 2846060.0 VND
Availability: InStock

Mã kho: PAL701

Mã nhà sản xuất: GPC22/0-38-X

Tên nhà sản xuất: Panduit

2.846.060₫ - 2.846.060₫

2.846.060₫

2.846.060₫ - 2.846.060₫

2.846.060₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Grounding Bonding / Grounding Mechanical Connectors / U Bolt Grounding Clamps: Panduit GPC22/0-38-X

MÔ TẢ SẢN PHẨM

Bronze grounding clamp, U-bolt for 2 cables, #4 SOL - 2/0 STR copper conductor size range, 3/8” (9.5mm) iron pipe size.

_THÔNG SỐ KỸ THUẬT:

Sub Brand	StructuredGround
Material	Bronze/Silicon Bronze
Ground Rod Size (In.)	0.75
Iron Pipe Size (In.)	3/8
Overall Length (In.)	1.62
Overall Length (mm)	41.1
Overall Width (In.)	1.38
Overall Width (mm)	35.1
Overall Height (In.)	2.8
Overall Height (mm)	71.1
Bolt Diameter (In.)	3/8
Bolt Diameter (mm)	9.5
Hex Size (In.)	9/16
Standards Met	cULus Listed 467, DB Rated
Product Type	Bronze Grounding Clamp,U-Bolt, for two parallel cables
Part Features	Accommodates a wide range of pipe, tube, rod and conductor sizes, minimizing inventory requirements, saving cost.

Panduit Bronze grounding clamp, U-bolt for 2 cables, #4 SOL - 2/0 STR copper conductor size range, 3/8” (9.5mm) iron pipe size. [GPC22/0-38-X]; PAL701
