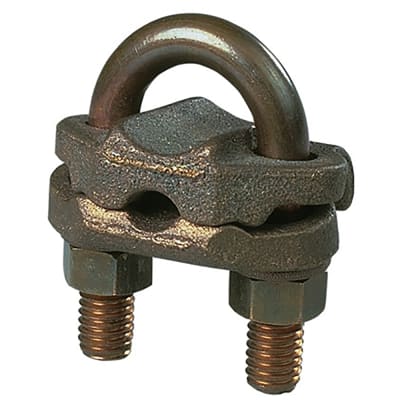

Panduit Bronze grounding clamp, .204-.419" wire dia. range, 5/8" or 3/4" rod, 3/8" IPS. [GPL-5-Q]; PAL803

Name: Panduit Bronze grounding clamp, .204-.419" wire dia. range, 5/8" or 3/4" rod, 3/8" IPS. [GPL-5-Q]; PAL803
Brand: Panduit
SKU: PAL803
Price: 1946460.0 VND
Availability: InStock

Mã kho: PAL803

Mã nhà sản xuất: GPL-5-Q

Tên nhà sản xuất: Panduit

1.946.460₫ - 1.946.460₫

1.946.460₫

1.946.460₫ - 1.946.460₫

1.946.460₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Grounding Bonding / Grounding Mechanical Connectors / U Bolt Grounding Clamps: Panduit GPL-5-Q

MÔ TẢ SẢN PHẨM

Bronze grounding clamp, .204-.419" wire dia. range, 5/8" or 3/4" rod, 3/8" IPS.

_THÔNG SỐ KỸ THUẬT:

Sub Brand	StructuredGround
Material	Bronze/Silicon Bronze
Ground Rod Size (In.)	0.625
Iron Pipe Size (In.)	3/8
Overall Length (In.)	2
Overall Length (mm)	50.8
Overall Width (In.)	1.63
Overall Width (mm)	41.4
Overall Height (In.)	2.75
Overall Height (mm)	69.9
Bolt Diameter (In.)	3/8
Hex Size (In.)	9/16
Standards Met	cULus Listed 467, DB Rated
Surface Treatment	Galvanic/electrolytic zinc plated
Product Type	Bronze Grounding Clamp, U-Bolt, single cable
Part Features	Accommodates a wide range of pipe, tube, rod and conductor sizes, minimizing inventory requirements, saving cost.

Panduit Bronze grounding clamp, .204-.419" wire dia. range, 5/8" or 3/4" rod, 3/8" IPS. [GPL-5-Q]; PAL803
